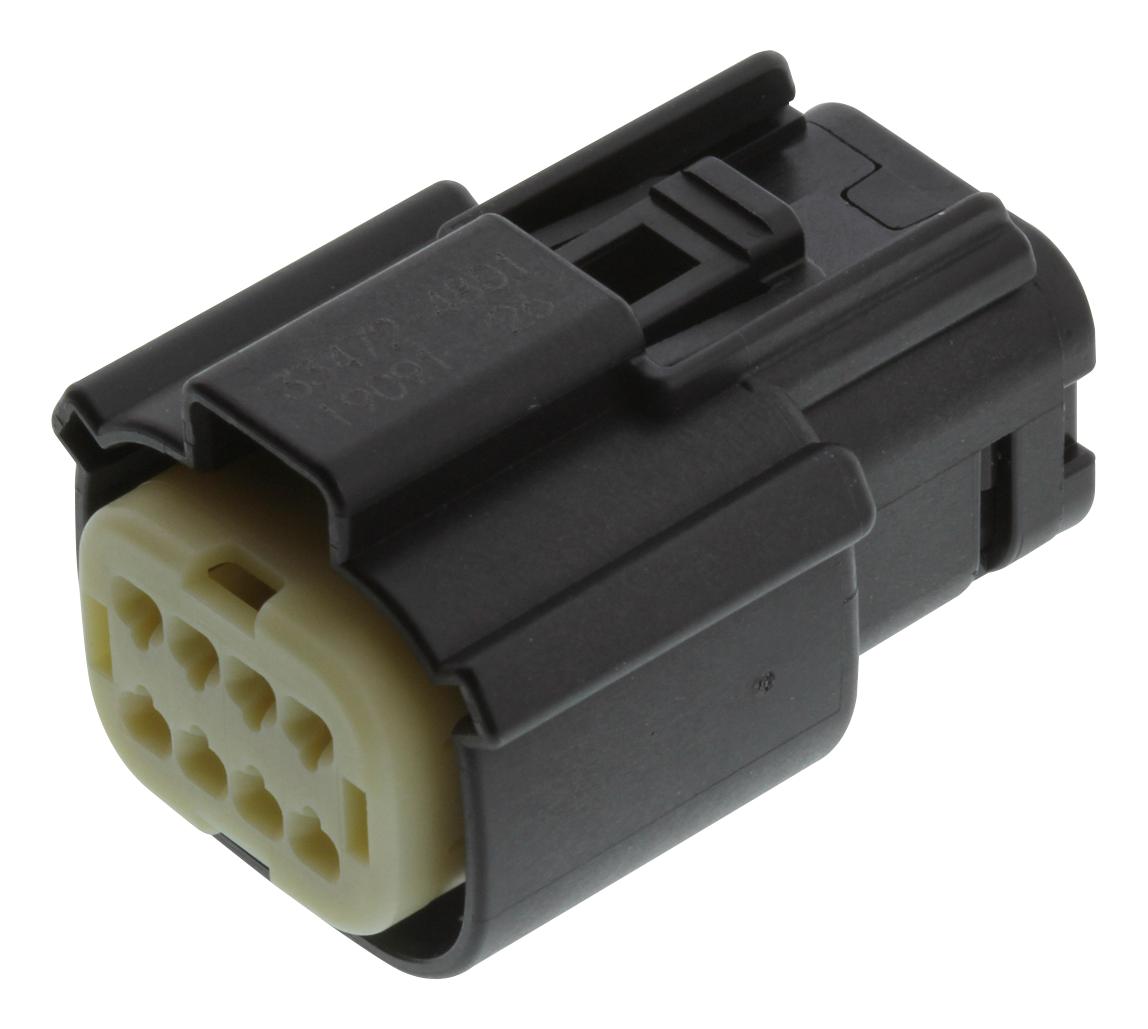

MOLEX 334724801 MX150 Sealed Connector
The MOLEX 33472-4801 is a robust MX150 sealed female connector within the 33472 series. Designed for demanding applications such as power distribution, wire-to-board connections, and wire-to-wire harnesses, this connector offers reliable performance in harsh environments. It features a dual-row configuration with 8 circuits, polarization for secure mating, and a black modified polystyrene resin housing. The connector is not equipped with connector position assurance (CPA) and is suitable for use with MX150 terminals and backshells. It operates within a temperature range of -40°C to +125°C and is compliant with EU ELV and RoHS directives.
MOLEX 334724801 MX150 Sealed Connector Specifications:
- Product Family: Crimp Housings
- Series: 33472
- Application: Power, Wire-to-Board, Wire-to-Wire
- Circuits (maximum): 8
- Color - Resin: Black
- Glow-Wire Capable: No
- Keying to Mating Part: Yes
- Lock to Mating Part: Yes
- Material - Resin: Modified Polystyrene
- Alloy: N/A
- Net Weight: 11.408 g
- Number of Rows: 2
- Packaging Type: Individual Cell Panel Mount
- Pitch - Mating Interface: 3.50 mm
- Polarized to Mating Part: Yes
- Stackable: No
- Temperature Range - Operating: -40° to +125°C
- EU ELV Compliant: Yes
- EU RoHS: Compliant
- China RoHS: Green Image
- REACH SVHC: Not Contained
- Halogen-Free Status: Low-Halogen
- Mates With: MX150 Male Sealed Connector 33482, MX150 Male Bulkhead Twist-Lock Sealed Connector 348404410
- Use With: MX150 Female Terminal 33012, 33001, MX150 Cavity Plug Sealed 343450001, MX150 Backshell 349510811, 349510821
