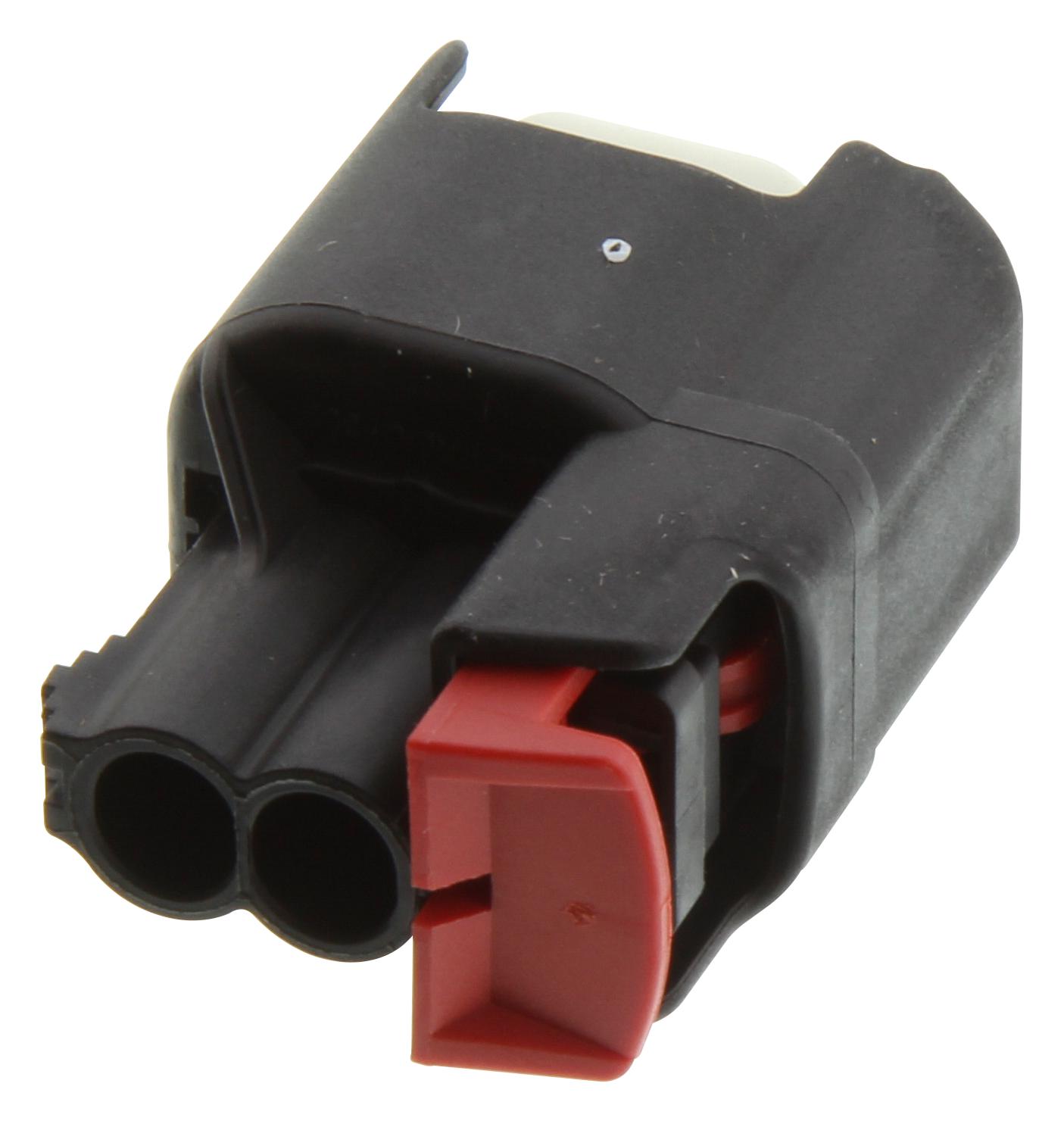

MOLEX 340620028 MX150 Sealed Receptacle
The MOLEX 34062-0028 is a robust MX150 sealed female receptacle, part of the 34062 series. Designed for power applications, this connector offers a secure and reliable connection with its keying option D and polarized design. Constructed from black nylon resin, it provides durability and resistance to environmental factors. It is compatible with MX150 cable-sealed male connectors and utilizes female terminals for termination. This component is RoHS compliant and suitable for a wide range of automotive and industrial applications requiring a sealed connector solution.
MOLEX 340620028 MX150 Sealed Receptacle Specifications:
- circuits_maximum: 2
- color_resin: Black
- gender: Receptacle
- glow_wire_capable: No
- keying_to_mating_part: Yes
- lock_to_mating_part: Yes
- material_resin: Nylon
- net_weight_g: 4.400
- number_of_rows: 1
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface_mm: 5.00
- pitch_termination_interface_mm: 5.00
- polarized_to_mating_part: Yes
- stackable: No
- temperature_range_operating_c: -40° to +125°
- lead_free_process_capability: N/A
- eu_elv_compliant: Yes
- eu_rohs_compliant: Yes
- china_rohs_compliant: Yes
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
- mates_with: 34675 MX150 Cable-Sealed Male Connector
- use_with: 34083 Tin (Sn) Cable Seal Female Terminal, 34081 Silver (Ag) and Gold (Au) Cable Seal Female Terminal
