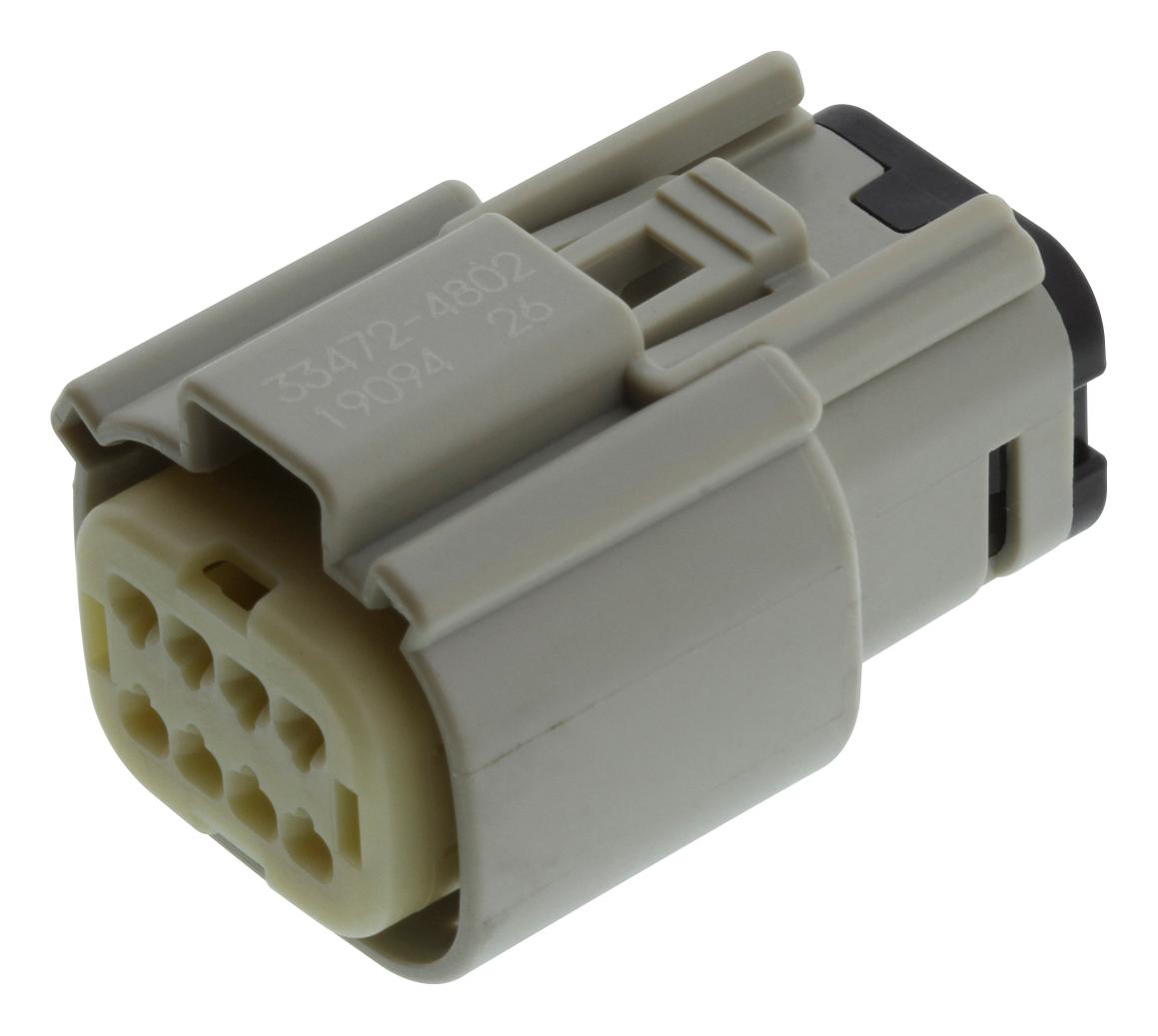

MOLEX 334724802 MX150 Sealed Connector
The MOLEX 33472-4802 is a robust MX150 sealed female connector, part of the MX150 Sealed and Unsealed Connector System. Designed for demanding applications such as power, wire-to-board, and wire-to-wire connections, it offers reliable performance and secure mating. The connector features 8 circuits, polarization 'B', and a light gray (resin) color. It is RoHS compliant and operates effectively within a temperature range of -40°C to +125°C, making it suitable for various industrial and automotive environments. It is designed to mate with MX150 male connectors and utilizes MX150 female terminals for complete system integration.
MOLEX 334724802 MX150 Sealed Connector Specifications:
- series: 33472
- application: Power, Wire-to-Board, Wire-to-Wire
- polarization: B
- connector_position_assurance: No CPA
- upc: 889056886260
- circuits_maximum: 8
- color: Light Gray (Resin)
- gender: Receptacle
- glow_wire_capable: No
- keying_to_mating_part: Yes
- lock_to_mating_part: Yes
- material_resin: Modified Polystyrene
- material_alloy: N/A
- net_weight_g: 11.408
- number_of_rows: 2
- packaging_type: Individual Cell Panel Mount
- pitch_mating_interface: 3.50mm
- polarized_to_mating_part: Yes
- stackable: No
- operating_temperature_range: -40°C to +125°C
- elv_compliant: Yes
- rohs_compliant: Yes
- china_rohs: Green
- phthalates: Not Contained
- halogen_free_status: Low-Halogen
- mates_with: MX150 Male Sealed Connector, MX150 Right-Angle Header, MX150 Male Bulkhead Twist-Lock Sealed Connector
