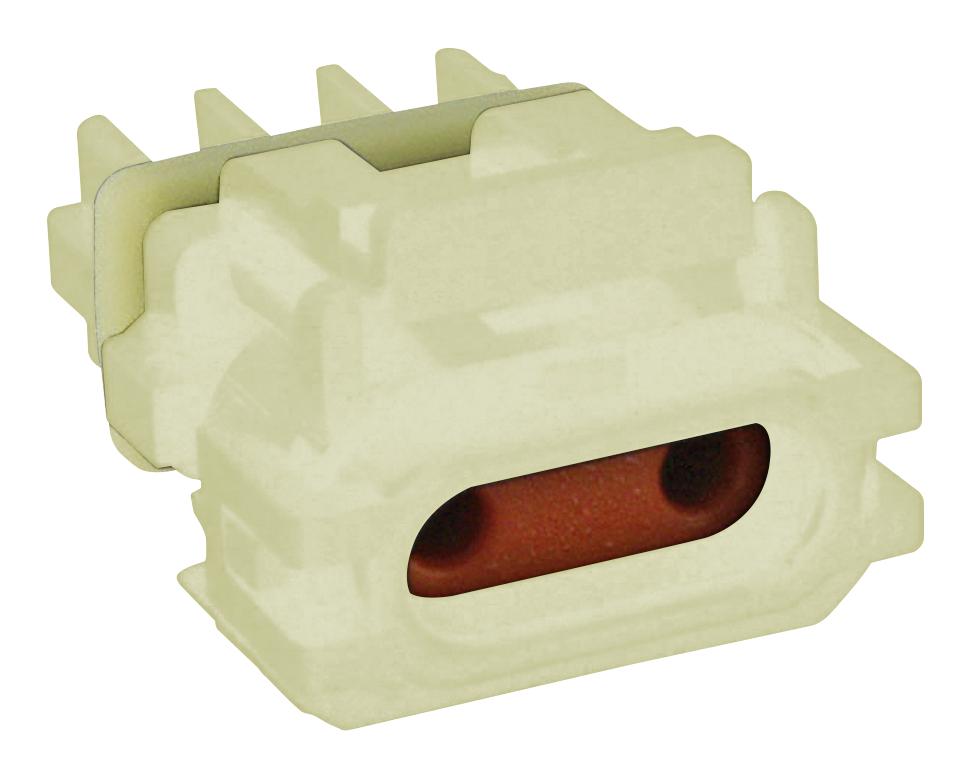

MOLEX 521170240 Waterproof Wire-to-Wire Housing
The MOLEX 52117-0240 is a Mizu-P25 miniature waterproof wire-to-wire receptacle housing, engineered for reliable connections in demanding environments. This connector offers a 5.00mm pitch and is designed to mate with the 52116 series plug housing. Constructed from durable polyester resin, it provides excellent resistance to moisture and splash, making it suitable for automotive, industrial, and outdoor applications. Its compact design and ease of use contribute to efficient assembly and long-lasting performance.
MOLEX 521170240 Waterproof Wire-to-Wire Housing Specifications:
- Circuits_maximum: 2
- Color_Resin: White
- Gender: Receptacle
- Glow_Wire_Capable: No
- Lock_to_Mating_Part: Yes
- Material_Resin: Polyester
- Net_Weight: 824.900/mg
- Number_of_Rows: 1
- Packaging_Type: Tray
- Panel_Mount: No
- Pitch_Mating_Interface: 5.00mm
- Stackable: No
- Temperature_Range_Operating: -40° to +105°C
- Current_Maximum_per_Contact: 3.0A
- Lead_freeProcess_Capability: N/A
