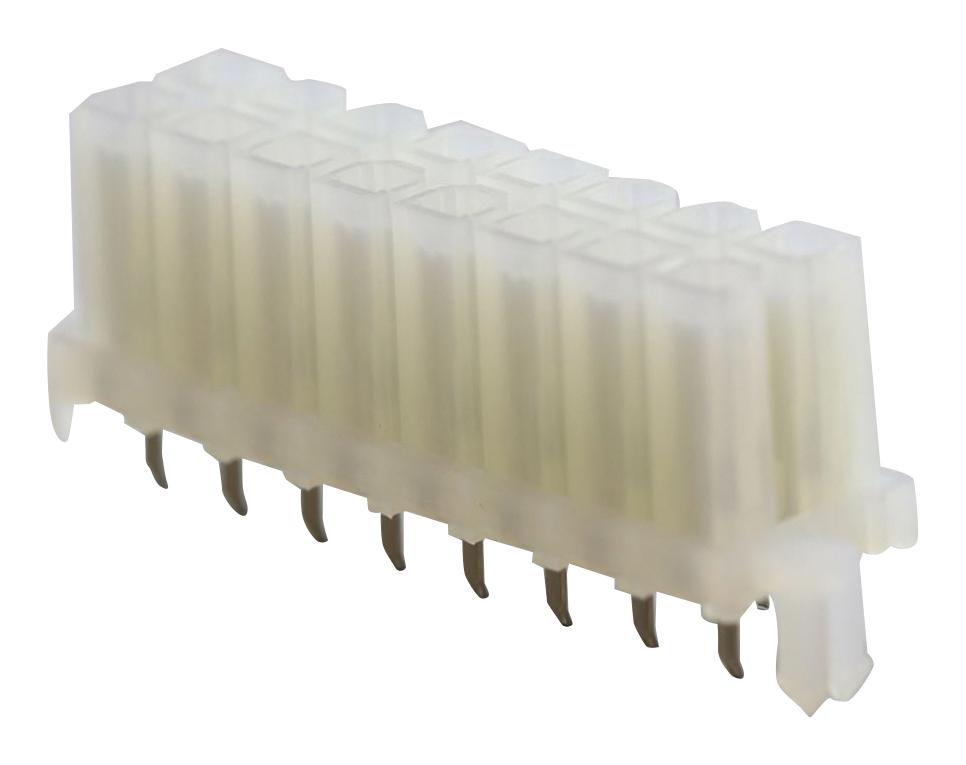

MOLEX 15247160 Power Receptacle
The Mini-Fit BMI Receptacle Header is a reliable power connector with a 4.20mm pitch, dual-row configuration, and a vertical orientation with snap-in plastic pegs. Made from durable nylon and brass with tin plating, it supports up to 16 circuits and is rated for 9.0A current and 600V voltage. Designed for board-to-board power applications, it offers high mating cycle durability, UL and CSA certification, and compliance with RoHS and ELV standards. Suitable for harsh environments with operating temperatures from -40°C to +105°C, it ensures secure and efficient electrical connections.
MOLEX 15247160 Power Receptacle Specifications:
- Pitch: 4.20mm
- Number of Circuits: 16
- Maximum Circuits (Loaded): 16
- Color - Resin: Natural
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Resin: Nylon
- Net Weight: 3.248g
- Number of Rows: 2
- Orientation: Vertical
- PCB Locator: Yes
- PCB Retention: Yes
- Recommended PCB Thickness: 1.00mm
- Temperature Range - Operating: -40°C to +105°C
- Contact Current - Maximum: 9.0A
- Voltage - Maximum: 600V AC (RMS)/DC
- Termination Interface: Solder Type with Pegs
- Flammability: UL 94V-2
- Certifications: UL Listed, CSA Certified
- RoHS Compliance: Yes
- Low-Halogen: Yes
- Halogen-Free: Yes
- Process Temperature Max: 240°C
- Lead-free Process Capability: Wave
Buy the Molex Series Mini-Fit BMI Receptacle Header: 15247160
Secure your electrical connections with the Molex Mini-Fit BMI Power Receptacle header, featuring a 4.20mm pitch, dual-row design, and UL approval. With a robust nylon and brass construction, it supports up to 16 circuits at 9.0A and 600V, ensuring high current capacity and safety. Its vertical orientation and snap-in design make assembly quick and dependable, suitable for a variety of board-to-board power applications. Operating reliably from -40°C to 105°C, this connector is the ideal choice for demanding industrial environments.
Buy Molex Mini-Fit BMI 15247160 now and experience unmatched reliability and performance for your power connection needs.
Frequently Asked Questions
Where can I buy MOLEX 15247160?
You can click on the BUY or RFQ button to purchase 15247160 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 15247160?
You can download the 15247160 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 15247160?
MOLEX
