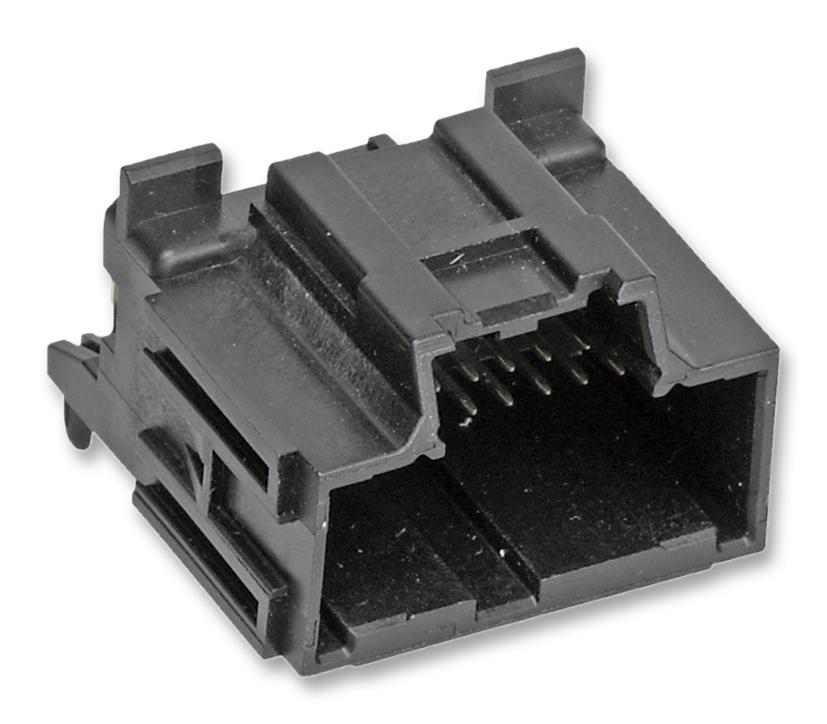

MOLEX 346916200 Stac64 Header Assembly
The MOLEX 34691-6200 Stac64 header assembly is a right-angle connector designed for robust wire-to-board applications. This assembly offers 20 circuits and incorporates polarization A for secure mating. Constructed with a black high-temperature thermoplastic resin and tin-plated brass terminals, it provides excellent durability and electrical performance. It is suitable for various industrial applications requiring reliable and space-efficient connectivity.
MOLEX 346916200 Stac64 Header Assembly Specifications:
- circuits_loaded: 20
- circuits_maximum: 20
- color_resin: Black
- durability_mating_cycles: 10
- glow_wire_compliant: No
- material_metal: Brass
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: High Temperature Thermoplastic
- number_of_rows: 2
- orientation: Right Angle
- pitch_mating_interface: 2.54mm
- pitch_termination_interface: 2.54mm
- polarized_to_mating_part: Yes
- polarized_to_pcb: Yes
- shrouded: Yes
- stackable: No
- temperature_range_operating: -40°C to +105°C
- termination_interface_style: Through Hole
- current_max_per_contact: 10.0A
- voltage_max: 500V
- lead_free_process_capability_wave_cycles: 003
- process_temperature_max_c: 260
- duration_at_max_process_temp_seconds: 040
Buy the 34691-6200 MOLEX Stac64 Header Assembly | myMectronic
Purchase the MOLEX 34691-6200 Stac64 Header Assembly securely and efficiently for your project needs.
Buy Now
