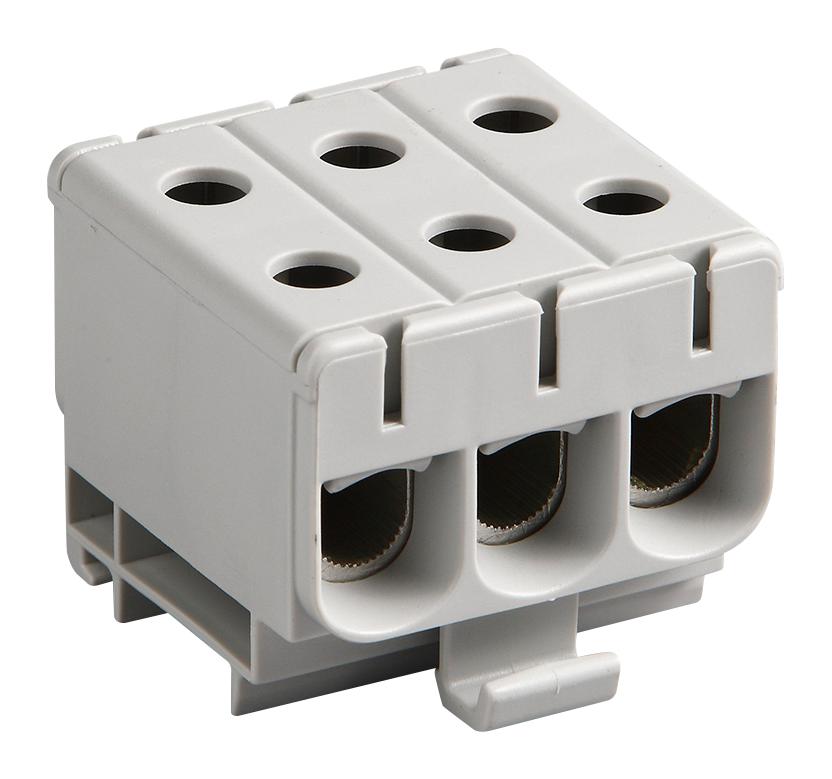

MOLEX 2016066163 High-Current Terminal Block
High-current universal clamp terminal block designed for wire-to-wire connections, mounted on 35.00mm DIN rails. Capable of handling 150.0A at 600V, with grey housing and cover. Features include three circuits, aluminum metal components with tin plating, polyamide resin insulating material, and screw termination interface. Suitable for operating temperatures from -40°C to +105°C, offering reliable electrical performance. The component is ideal for industrial automation, electrical panel wiring, and high-current distribution systems, providing secure clamping and easy installation for efficient circuit management.
MOLEX 2016066163 High-Current Terminal Block Specifications:
- Product Family: Terminal Blocks
- Series: 201606
- Component Type: One Piece
- Application: Wire-to-Wire
- Mounting: DIN-rail
- Color - Resin: Grey
- Material - Metal: Aluminum
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyamide
- Number of Rows: 3
- Entry Angle: Horizontal
- Temperature Range - Operating: -40°C to +105°C
- Termination Interface: Screw
- Wire Size AWG: 1/0-6, 6+6, 8+8+8
- Current - Maximum per Contact: 150.0A
- Voltage - Maximum: 600V
- Length: 13.00+13.00 mm to 13.00-53.00 mm
- Product Name: High-Current Universal Clamp Terminal Block
Buy the Buy Molex High-Current Universal Clamp Terminal Block Part Number 2016066163 Online
Purchase the Molex High-Current Universal Clamp Terminal Block online today and benefit from its robust construction, capacity of 150A at 600V, and easy DIN-rail mounting. Designed for wire-to-wire connections, it features three circuits, aluminum metal with tin plating, and a polyamide insulating body. Suitable for industrial automation, electrical panel wiring, and high-current applications, this terminal block provides secure clamping, durable performance, and straightforward installation. Ensure your projects are powered with reliable, high-quality components from a trusted manufacturer.
Order your Molex Series201606 2016066163 high-current terminal block today and ensure reliable power distribution in your industrial projects.
