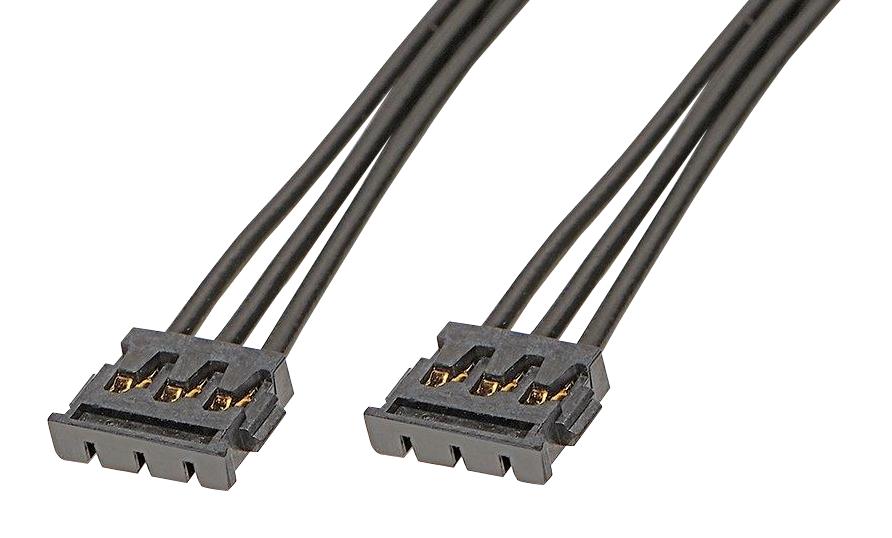

MOLEX 369200300 Pico-EZmate Cable Assembly
The Pico-EZmate cable assembly features a 1.20mm pitch, single row configuration, and a total length of 50.00mm with 3 circuits. This black, female-to-female overmolded connector system is designed for reliable connector-to-connector connections in industrial and electronic applications. Made from copper alloy with gold plating, it ensures excellent electrical performance and corrosion resistance. Compatible with Pico-EZmate headers, it supports up to 50V AC/DC and has a maximum current of 1.54A per contact. The assembly utilizes liquid crystal polymer insulation for durability and heat resistance, making it suitable for demanding environments.
MOLEX 369200300 Pico-EZmate Cable Assembly Specifications:
- Pitch - Mating Interface: 1.20mm
- Number of Circuits (Loaded): 3
- Cable Length: 50.00mm
- Color - Resin: Black
- Gender: Female-Female
- Material - Metal: Copper Alloy
- Material - Plating Mating & Termination: Gold
- Material - Resin: Liquid Crystal Polymer
- Wire Insulation Diameter: 0.100 inches
- Wire Size AWG: 28
- Electrical Current - Maximum per Contact: 1.54A
- Voltage - Maximum: 50V AC/DC
- Packaging Type: Bag
- Net Weight: 0.430 grams
- Number of Rows: 1
- RoHS & REACH Compliant, Halogen-Free, Not Low-Halogen
- Reference: 369200300-000
- Connector Type: Discrete Wire Assembly
- Assembly Configuration: Connector to Connector, Overmolded
- Lock to Mating Part: Yes
Buy the Molex 369200300 – Reliable Cable Assemblies for Industrial Applications
Purchase the Molex Pico-EZmate cable assembly online today for a dependable and easy-to-install connection solution. Designed with a 1.20mm pitch, single row, and 3 circuits, it offers excellent electrical performance. Made from durable materials like copper alloy and liquid crystal polymer, it supports up to 50V and 1.54A per contact. Its black overmolded design ensures robust connection reliability in demanding environments. Get this versatile cable assembly now and enhance your electronic or industrial systems with high-quality, proven components.
Order your Molex Series 36920 Pico-EZmate cable assembly today and ensure reliable, high-performance connections in your industrial projects.
