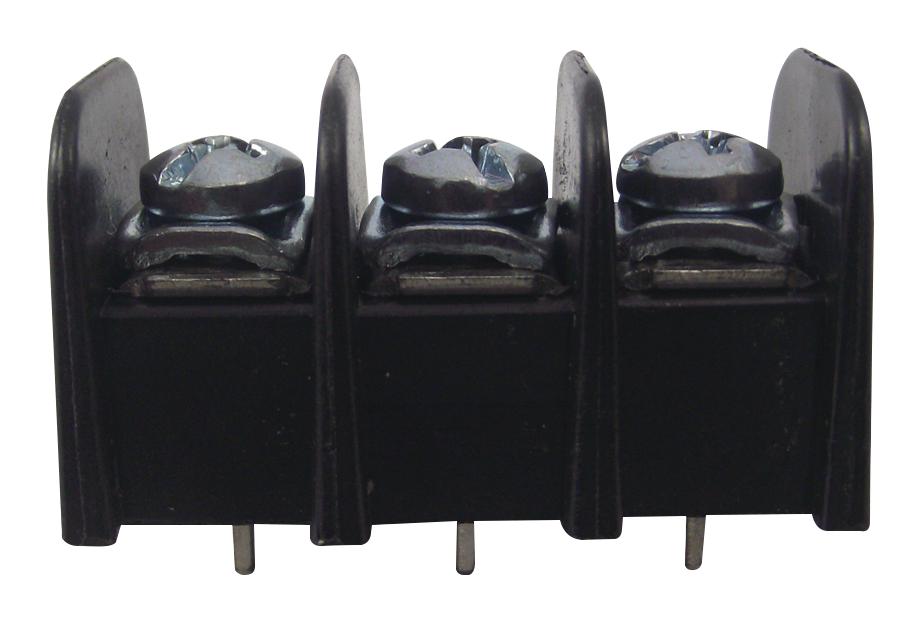

MOLEX 387206303 Barrier Strip
The 9.53mm Pitch Beau PCB Terminal Strip is a durable barrier strip designed for secure and efficient electrical connections. Made of high-quality brass with tin plating, it offers reliable performance across a temperature range of -40°C to +130°C. The strip features a single row with three circuits, accommodating wire sizes from 14 to 22 AWG and up to 1.50mm in thickness. Its horizontal entry angle and without mounting ends make it suitable for various PCB applications, providing a maximum current of 15A per contact and a voltage rating of 300V.
MOLEX 387206303 Barrier Strip Specifications:
- Pitch - Mating Interface: 9.53mm
- Circuits (Loaded): 3
- Color - Resin: Black
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester
- Temperature Range - Operating: -40°C to +130°C
- Wire Size: 14, 16, 18, 20, 22 AWG
- Wire Size mm: 0.50-1.50
- Current - Maximum per Contact: 15A
- Voltage - Maximum: 300V
- Length of PC Tail: 480mm
- Recommended PCB Thickness: 3.18mm
- Entry Angle: Horizontal
- Surface Mount Compatible: No
- Stackable: No
- RoHS Compliant: Yes
Buy the Buy Molex Barrier Strip Part Number 0387206303 Online
Secure your electrical connections efficiently with this high-quality barrier strip featuring 3 circuits and a 9.53mm pitch. Built from durable brass with tin plating, it withstands temperatures from -40°C to +130°C. Suitable for wires from 14 to 22 AWG and up to 1.50mm thick, it supports a maximum current of 15A per contact and voltage of 300V. Its horizontal entry angle and RoHS compliance make it ideal for industrial and electronic applications requiring reliable, corrosion-resistant terminal connections.
Buy Molex 0387206303 now and experience unmatched reliability and performance with a durable barrier strip designed for secure PCB connections.
Frequently Asked Questions
Where can I buy MOLEX 387206303?
You can click on the BUY or RFQ button to purchase 387206303 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 387206303?
You can download the 387206303 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 387206303?
MOLEX
