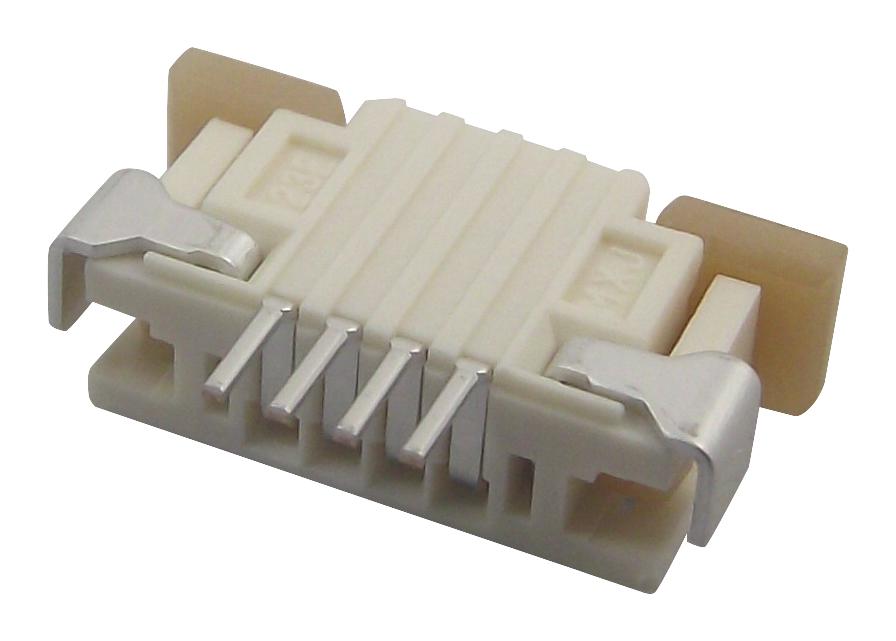

MOLEX 522710669 FFC-FPC Connector
The Molex Easy-On FFC/FPC Connector series features a 1.00mm pitch, right-angle bottom contact design, and a slider mechanism for quick and secure connections. With a height of 3.00mm and gold-plated contacts, it supports 6 circuits suitable for flexible flat cable and flexible printed circuit applications. Certified by CSA and UL, this surface-mount connector is made of phosphor bronze with tin plating, ensuring durability up to 30 mating cycles. It operates within a temperature range of -40°C to +85°C, making it ideal for various industrial and electronic device integrations.
MOLEX 522710669 FFC-FPC Connector Specifications:
- Pitch - Mating Interface: 1.00mm
- Number of Circuits: 6
- Height: 3.00mm
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Flammability: UL 94V-0
- Operating Temperature Range: -40°C to +85°C
- Current - Maximum per Contact: 0.5A
- Voltage - Maximum: 50V AC/DC
- Contact Type: Bottom
- Orientation: Right Angle
- PCB Mounting: Surface Mount
- Durability: 30 mating cycles
- Certification: CSA, UL
- Packaging: Embossed Tape on Reel
- Resin Color: Natural
Buy the Molex 522710669 – Reliable FFC-FPC Connector for Industrial Applications
Purchase the Molex FFC-FPC connector online for reliable, high-quality connections in your electronic devices. Designed with a 1.00mm pitch, gold-plated contacts, and a slider mechanism, it ensures secure and efficient connections. Its surface-mount design simplifies PCB assembly, supports up to 30 mating cycles, and operates within -40°C to +85°C. Approved by CSA and UL, this durable connector is ideal for flexible flat cables and printed circuits in industrial and consumer electronics. Order now for fast delivery and proven performance.
Get Molex 522710669 today—built for precision, durability, and easy SMT assembly in your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 522710669?
You can click on the BUY or RFQ button to purchase 522710669 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 522710669?
You can download the 522710669 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 522710669?
MOLEX
