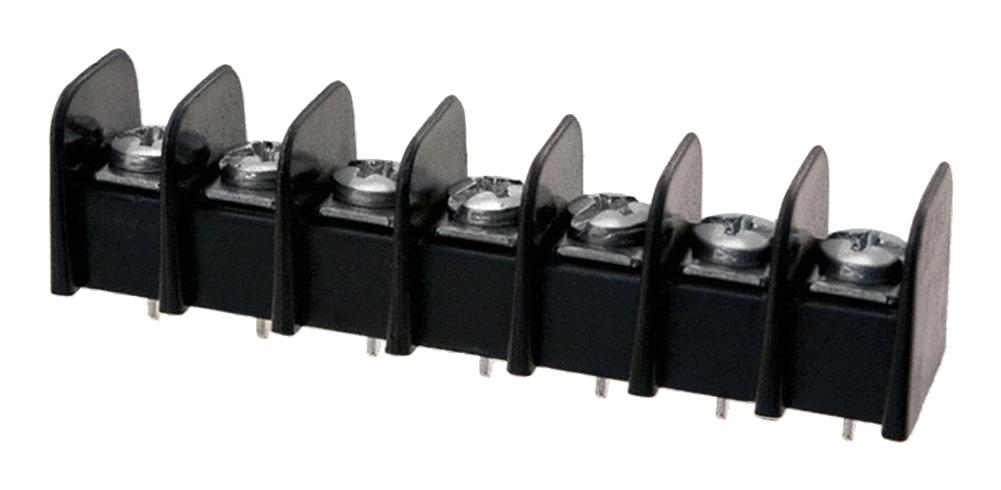

MOLEX 387206310 Barrier Strip
The Molex 38720 series Beau Barrier Strips are horizontally oriented, 9.53mm pitch terminal blocks designed for PCB applications. These barrier strips support up to 10 circuits with a maximum operating temperature of -40°C to +130°C. Made of durable polyester resin with brass metal components, they feature tin-plated contacts ensuring reliable connections. Designed for wires from AWG 14 to 22 (0.50-1.50mm²), they handle up to 15A and 300V. Suitable for various industrial and electronic applications, these barrier strips are stackable and compliant with RoHS standards, providing a dependable connection solution.
MOLEX 387206310 Barrier Strip Specifications:
- Pitch - Mating Interface: 9.53mm
- Number of Circuits: 10
- Current - Maximum per Contact: 15.0A
- Voltage - Maximum: 300V
- Operating Temperature Range: -40°C to +130°C
- Material - Metal: Brass
- Material - Plating: Tin
- Material - Resin: Polyester
- Wire Size: AWG 14, 16, 18, 20, 22 (0.50-1.50mm²)
- PCB Thickness - Recommended: 3.18mm
- Surface Mount Compatible: No
- Stackable: No
- Entry Angle: Horizontal
- Color: Black
- RoHS Compliant, ELV Not Relevant, Halogen-Free
- Voltage Rating: 300V, Current Rating: 15A per contact
- Temperature Range: -40°C to +130°C
- Plating - Mating and Termination: 3.810μm Tin
Buy the Molex Series 38720 Barrier Strip: 387206310
Purchase the Molex Series 38720 Barrier Strip online today for your industrial and electronic wiring needs. These horizontal, 10-circuit terminal blocks feature 9.53mm pitch, support AWG 14-22 wires, and handle up to 15A and 300V. Constructed with durable brass and polyester, they are RoHS compliant and operate within -40°C to +130°C. Ideal for mounting on PCBs, these barrier strips provide dependable, secure connections for various electrical applications. Buy online now for fast delivery and quality assurance.
Order your Molex Series 38720 barrier strip today and ensure reliable, high-current PCB connections with durable, RoHS-compliant design.
Frequently Asked Questions
Where can I buy MOLEX 387206310?
You can click on the BUY or RFQ button to purchase 387206310 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 387206310?
You can download the 387206310 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 387206310?
MOLEX
