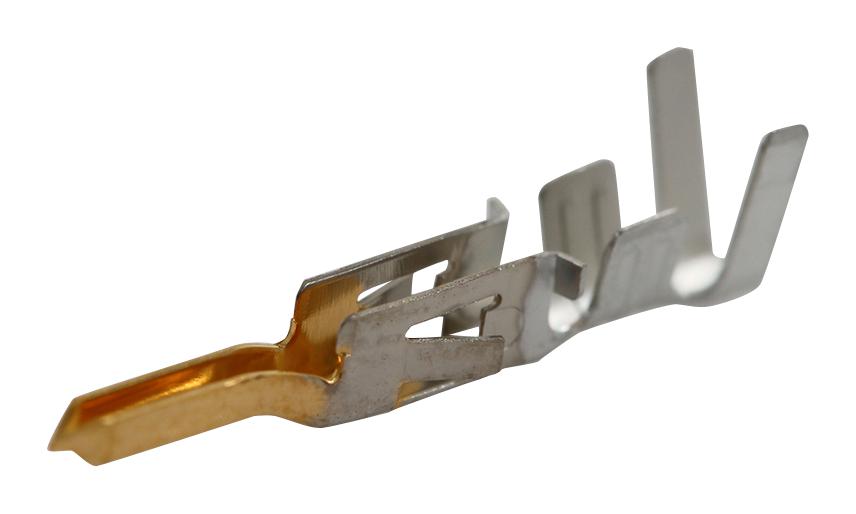

MOLEX 39000126 Crimp Terminal
Mini-Fit Male Crimp Terminal constructed of phosphor bronze with tin plating, suitable for 18-24 AWG wires. It is designed for reliable crimping and is compatible with Mini-Fit Jr. Power Connectors, offering high durability with up to 30 mating cycles. The terminal is mounted on a reel for efficient handling and assembly, and supports a maximum current of 9.0A at a voltage of 600V. This terminal is RoHS compliant and ideal for electrical wiring applications requiring secure connections and high-performance standards.
MOLEX 39000126 Crimp Terminal Specifications:
- Material: Phosphor Bronze
- Plating: Tin
- Wire Size: 18-24 AWG
- Wire Diameter: 1.30-3.10mm
- Current Rating: 9.0A
- Voltage Rating: 600V
- Durability: Up to 30 mating cycles
- Net Weight: 0.125g
- Packaging: Reel
- Mating Interface: Crimp or Compression
- Min Plating Mating: Tin
- Min Plating Termination: Tin
- Applicable for crimp quality equipment
- Environmental Compliance: RoHS, ELV, Halogen-Free
- Part Number: 0039000126
- Series: 5558
- Application: Power, Wire-to-Wire
- Product Compatibility: Mini-Fit crimp terminals and housings
Buy the Buy Molex Mini-Fit Jr. Power Connectors Part Number 0039000126 Online
Purchase the Molex Mini-Fit Jr. Male Crimp Terminal online today to ensure secure, reliable connections for your electrical projects. Designed for 18-24 AWG wires, this tin-plated phosphor bronze terminal offers high durability and excellent contact quality. Compatible with Mini-Fit Jr. Power Connectors, it supports up to 9A current and 600V voltage, providing a safe and efficient connection. Reel packaging ensures easy handling during assembly, making it ideal for various industrial and electronic applications. Order now for quick delivery and trusted performance.
Buy Molex 0039000126 now and experience unmatched reliability and performance for your high-current electrical wiring needs.
