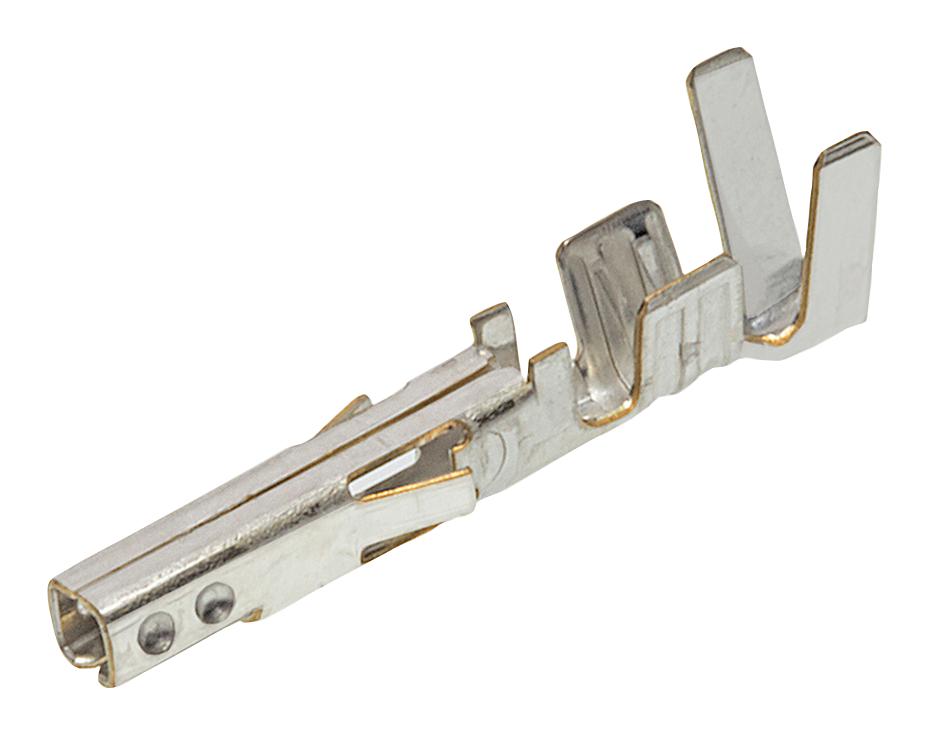

MOLEX 39000211 Power Crimp Terminal
The Mini-Fit Female Crimp Terminal is designed for efficient wire-to-board and wire-to-wire connections in power applications. Made with tin over nickel plating on brass, it supports 16 AWG wires and offers a maximum current of 9.0A at 600V. The terminal features durable crimp or compression termination interfaces, suitable for multiple mating cycles. Packaged on reels, these terminals are RoHS compliant, halogen-free, and meet industry standards for UL, CSA, and other certifications, ensuring reliable electric and mechanical performance in industrial and electronic systems.
MOLEX 39000211 Power Crimp Terminal Specifications:
- Material: Brass
- Plating: Tin over Nickel
- Wire Size: 16 AWG
- Wire Diameter: 1.80-3.10mm
- Current: 9.0A
- Voltage: 600V
- Durability (mating cycles max): 30
- Gender: Female
- Packaging: Reel
- Net Weight: 0.140g per terminal
- Termination Interface: Crimp or Compression
- Wire Insulation Diameter: 2.20-2.45mm
- Material - Metal: Brass
- RoHS: Compliant
- Halogen-Free: Yes
- Environmental Standards: EU RoHS, REACH SVHC not contained
Buy the Molex 39000211 – Reliable Power Crimp Terminals for Industrial Applications
Purchase Molex 39000211 power crimp terminals online now for secure, efficient wire-to-board and wire-to-wire connections. Designed for 16 AWG wire, these terminals feature tin over nickel plating for corrosion resistance and high electrical conductivity. They support up to 9A at 600V, ensuring safe power transmission in industrial, electronic, and automation systems. Packaged in reels, these terminals are RoHS compliant and withstand multiple mating cycles for long-term durability. Order today for quality, reliability, and easy integration into various power and signal applications.
Get Molex 39000211 today—built for precision, high durability, and power applications with reliable crimp connections.
Frequently Asked Questions
Where can I buy MOLEX 39000211?
You can click on the BUY or RFQ button to purchase 39000211 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 39000211?
You can download the 39000211 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 39000211?
MOLEX
