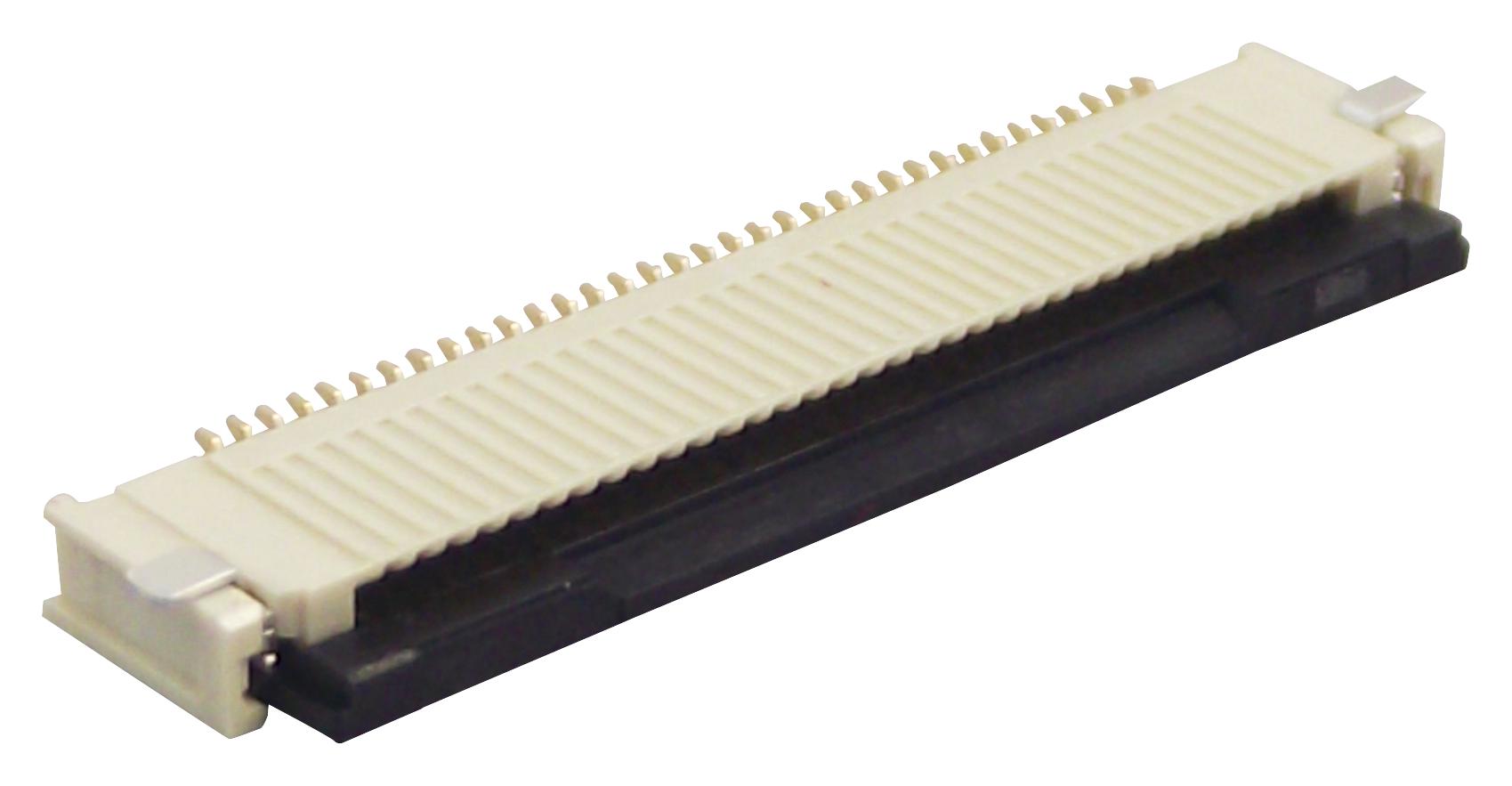

MOLEX 5051103591 FFC/FPC Connector
The Molex Easy-On™ FFC-FPC connector is a reliable surface-mount, right-angle ZIF connector with 35 circuits, designed for compact electronic assemblies. It features a 0.50mm pitch, 1.90mm height, and is constructed with phosphor bronze contacts plated with gold over nickel to ensure durability and excellent conductivity. Suitable for flexible flat cables, it offers operating temperature from -40°C to +105°C, with a maximum current of 0.5A per contact and voltage rating of 50V. The connector is RoHS compliant, halogen-free, and features a 25-mating cycle durability. Its black actuator provides easy handling and secure connection in tight spaces.
MOLEX 5051103591 FFC/FPC Connector Specifications:
- Series: 505110
- Product Family: FFC/FPC Connectors
- Number of Circuits: 35
- Maximum Circuits: 35
- Color - Resin: Beige
- Entry Angle: 90°
- Height - Mated: 1.90mm
- Contact Material: Phosphor Bronze
- Plating: Gold over Nickel
- Material - Resin: Liquid Crystal Polymer
- Durability: 25 mating cycles
- Operating Temperature: -40°C to +105°C
- Pitch - Mating Interface: 0.50mm
- Voltage Rating: 50V AC/DC
- Current per Contact: 0.5A
- Terminal Style: Surface Mount
- Wire/Cable Type: FFC/FPC
- RoHS and China RoHS Compliant
- Halogen-Free: Yes
- Packaging: Embossed Tape on Reel
Buy the Molex 5051103591 – Reliable FFC/FPC Connector for Industrial Applications
Enhance your electronic assembly with the Molex FFC/FPC connector, a 35-circuit, reliable surface-mount ZIF connector with gold-plated contacts. Featuring a 0.50mm pitch and 1.90mm height, it's designed for flexible flat cables in various industrial applications. This connector offers excellent durability with 25 mating cycles, operates within -40°C to +105°C, and supports 0.5A per contact at 50V. RoHS compliant and halogen-free, it ensures eco-friendly and safe integration in complex manufacturing environments.
Buy Molex 5051103591 now and experience unmatched reliability and performance in electronic interconnections for industrial use.
Frequently Asked Questions
Where can I buy MOLEX 5051103591?
You can click on the BUY or RFQ button to purchase 5051103591 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5051103591?
You can download the 5051103591 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5051103591?
MOLEX
