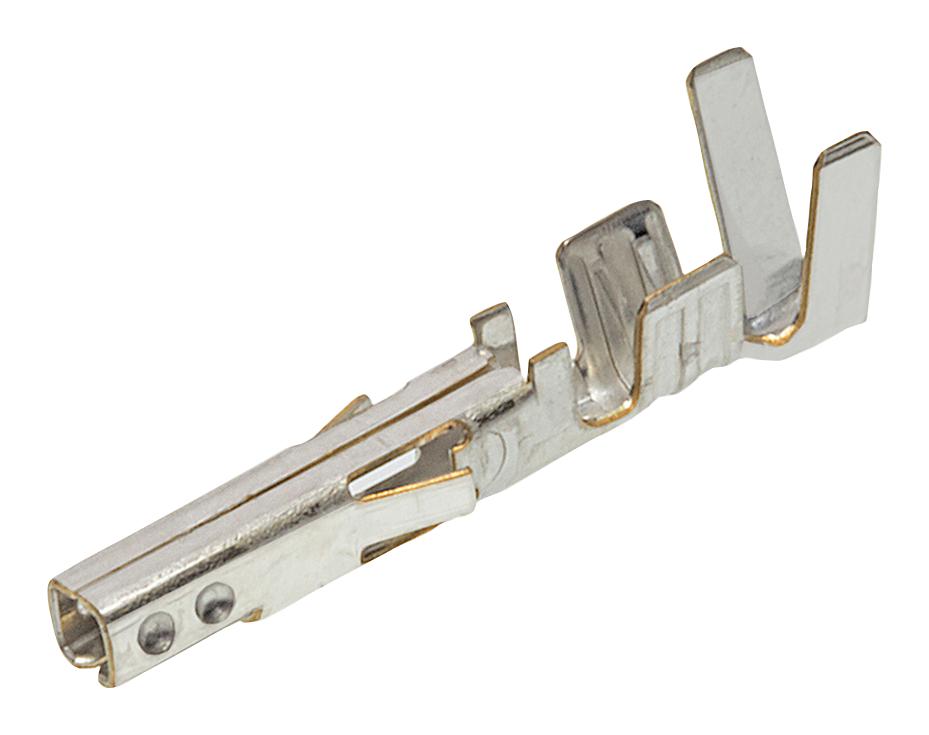

MOLEX 39000212 Female Crimp Terminal
Mini-Fit Female Crimp Terminal suitable for 16 AWG wires, plated with tin over nickel for corrosion resistance. Designed for reliable crimping with a maximum durability of 30 mating cycles, this terminal is part of the Mini-Fit Jr. power connector series, ensuring secure and stable electrical connections in wire-to-board and wire-to-wire applications. It is compatible with Mini-Fit Jr. headers and used in various electrical and electronic assemblies requiring high quality and RoHS compliance. The terminal's robust brass construction and precise crimping features make it ideal for industrial and commercial use.
MOLEX 39000212 Female Crimp Terminal Specifications:
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Wire Size AWG: 16
- Wire Size mm?: 1.80-3.10mm
- Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- Durability (mating cycles max): 30
- Packaging Type: Bag
- Net Weight: 0.140g
- Plating min - Mating: 2.540um
- Plating min - Termination: 2.540um
- Termination Interface Style: Crimp or Compression
- Application: Power, Wire-to-Board, Wire-to-Wire
- Series: 5556
- Gender: Female
- Product Family: Crimp Terminals
Buy the Molex Series 5556 Female Crimp Terminal: 39000212
Order the Molex 39000212 Female Crimp Terminal today to ensure secure, high-quality electrical connections for your power and wiring projects. Designed for 16 AWG wires with tin over nickel plating, this terminal offers excellent corrosion resistance and long-lasting durability. Suitable for wire-to-gear or wire-to-wire applications, it supports up to 9 amps at 600 volts. Its crimp design guarantees reliable contact integrity across up to 30 mating cycles, making it perfect for industrial, electronic, and power distribution uses. Purchase online for prompt delivery and assured quality.
Get Molex 39000212 today—built for reliable power connections with high durability and corrosion resistance.
Frequently Asked Questions
Where can I buy MOLEX 39000212?
You can click on the BUY or RFQ button to purchase 39000212 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 39000212?
You can download the 39000212 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 39000212?
MOLEX
