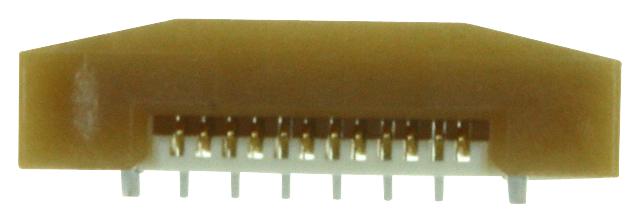

MOLEX 525590853 FFC FPC Connector
The Easy-On FFC-FPC Connector by Molex is a vertical, surface-mount ZIF connector designed for flexible printed circuits. It features 8 circuits with gold (Au) contact plating, ensuring reliable electrical connections. Ideal for compact electronic applications, it has a height of 3.90mm and a pitch of 0.50mm at the mating interface. Made from durable nylon with phosphor bronze contacts, it withstands up to 20 mating cycles and operates within a temperature range of -40°C to +85°C. Its UL-listed for safety and RoHS compliant, suitable for high-density flexible circuit assemblies demanding precision and longevity.
MOLEX 525590853 FFC FPC Connector Specifications:
- Circuits (Loaded): 8
- Entry Angle: Vertical
- Flammability: 94V-0
- Mated Height: 3.90mm
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Net Weight: 153.174 mg
- Number of Rows: 1
- Orientation: Vertical
- PCB Locator: No
- PCB Retention: Yes
- Packaging Type: Embossed Tape on Reel
- Pitch - Mating Interface: 0.50mm
- Polarized to PCB: No
- Stackable: No
- Temperature Range - Operating: -40°C to +85°C
- Termination Interface: Style: Surface Mount
- Wire/Cable Type: FFC/FPC
- Current - Maximum per Contact: 0.5A
- Voltage - Maximum: 50V AC/DC
Buy the Buy Molex Easy-On FFC-FPC Connector Part Number 525590853 Online
Purchase the Molex FFC FPC Connector online for your electronic assembly needs. Engineered for reliability, it offers 8 circuits, gold-plated contacts, and a compact vertical ZIF design featuring a 0.50mm pitch. Made from durable nylon with phosphor bronze contacts, it endures up to 20 mating cycles. Suitable for high-density flexible circuit applications, it operates from -40°C to +85°C, ensuring performance in demanding environments. Easy to install, RoHS compliant, and UL-listed, it’s ideal for space-constrained electronic projects requiring excellent electrical conductivity and long-term durability.
Get Molex 525590853 today—built for reliable high-density flexible circuit connections with long-lasting durability and precise performance.
Frequently Asked Questions
Where can I buy MOLEX 525590853?
You can click on the BUY or RFQ button to purchase 525590853 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 525590853?
You can download the 525590853 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 525590853?
MOLEX
