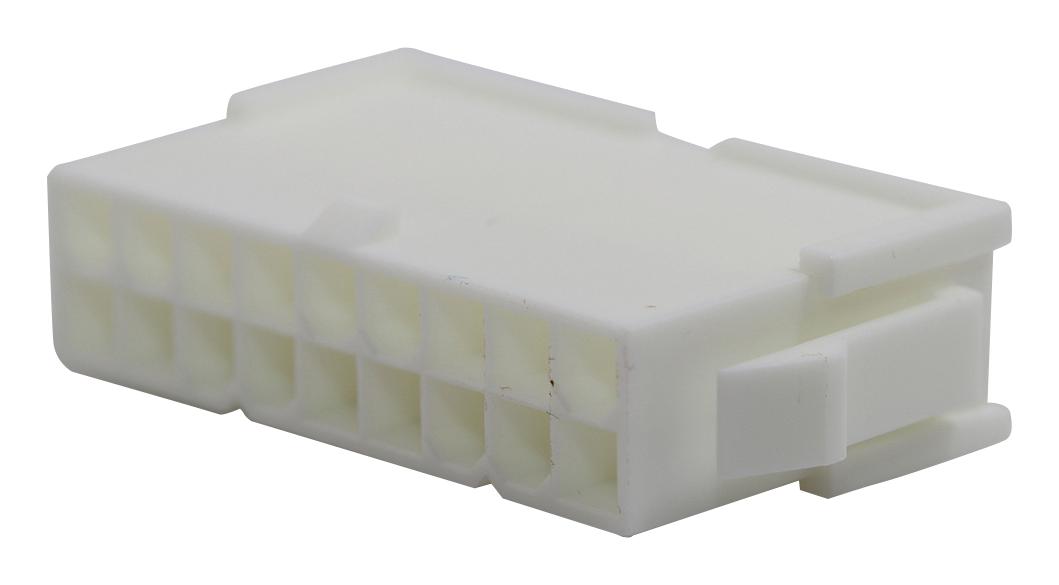

MOLEX 39012186 Power Connector
The Mini-Fit Jr. Power Connector is a high-quality, reliable power solution designed for applications requiring a dual-row, 18-circuit connector. Made with flame-retardant UL 94V-0 nylon, it supports a maximum current of 13A per circuit at operating temperatures ranging from -40°C to +105°C. Features include panel mounting ears, polarized design, stackable configuration, and compatibility with 16 AWG crimp terminals. Suitable for power and wire-to-board or wire-to-wire connections, it ensures safety and durability in various industrial electronics and power systems.
MOLEX 39012186 Power Connector Specifications:
- Series: 5559
- Number of Circuits: 18
- Color - Resin: Natural
- Flammability: UL 94V-0
- Material: Nylon
- Net Weight: 5.420 g
- Number of Rows: 2
- Panel Mount: Yes
- Pitch - Mating Interface: 4.20 mm
- Pitch - Termination Interface: 4.20 mm
- Temperature Range - Operating: -40°C to +105°C
- Current - Maximum per Contact: 13A
- Agency Certification: UL, CSA
- Environmental Compliance: RoHS, ELV, REACH SVHC Not Contained
- Lead-free Process Capability: Yes
Buy the Molex Series 5559 18-Circuit Power Connector: 0039012186
Secure your power connections with the Molex Mini-Fit Jr. 18-circuit power connector. Featuring a dual-row design, UL 94V-0 flame retardant nylon, and a maximum current of 13A per circuit, this connector is ideal for power and wire-to-board applications. Its stackable, polarized design ensures easy assembly and reliable operation across a temperature range of -40°C to +105°C. Certified by UL and CSA, it meets strict safety and environmental standards, making it a smart choice for industrial and electronic projects.
Buy Molex 0039012186 now and experience unmatched reliability and performance with a durable, high-current power connector designed for demanding applications.
Frequently Asked Questions
Where can I buy MOLEX 39012186?
You can click on the BUY or RFQ button to purchase 39012186 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 39012186?
You can download the 39012186 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 39012186?
MOLEX
