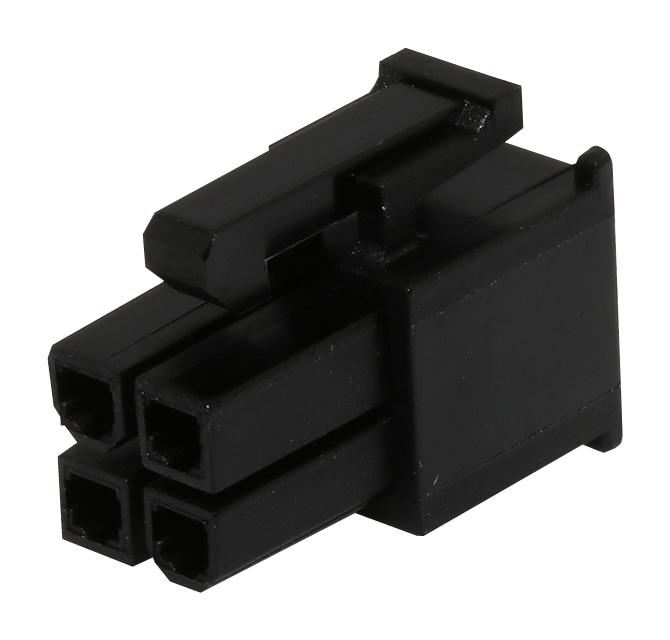

MOLEX 39013045 Mini-Fit Jr. Receptacle Housing
The MOLEX 39-01-3045 Mini-Fit Jr. receptacle housing is a versatile component for wire-to-board and wire-to-wire connections. It's designed for applications requiring a dual-row configuration with 4 circuits, offering a secure and reliable connection. Constructed with a black, UL 94V-2 resin, this housing is suitable for a wide range of industrial and commercial applications. It is compatible with a variety of PCB headers and crimp terminals, providing flexibility in system design. Its robust design and ease of use make it a popular choice for engineers and designers.
MOLEX 39013045 Mini-Fit Jr. Receptacle Housing Specifications:
- number_of_circuits: 4
- color: Black
- resin_flammability: 94V-2
- gender: Receptacle
- glow_wire_capable: No
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- material_resin: Nylon
- net_weight_g: 1.080
- number_of_rows: 2
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface_mm: 4.20
- pitch_termination_interface_mm: 4.20
- polarized_to_mating_part: Yes
- stackable: No
- operating_temperature_range_c: -40 to +105
- current_maximum_per_contact_a: 13.0
- lead_free_process_capability: N/A
- engineering_number: 5557-04R-BL
- drawing_numbers: PK-5557-002-000, PS-45750-001-001, PS-5556-001-001, TS-5556-002-001, SD-5557-003-000
- mates_with: 5559, 5566, 5569, 43810, 44068, 44281, 87427, 42404, 42440
- use_with: 5556, 45750
Buy the 39-01-3045 MOLEX Mini-Fit Jr. Receptacle Housing | myMectronic
Purchase the MOLEX 39-01-3045 Mini-Fit Jr. Receptacle Housing securely and reliably through myMectronic.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 39013045?
You can click on the BUY or RFQ button to purchase 39013045 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 39013045?
You can download the 39013045 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 39013045?
MOLEX
