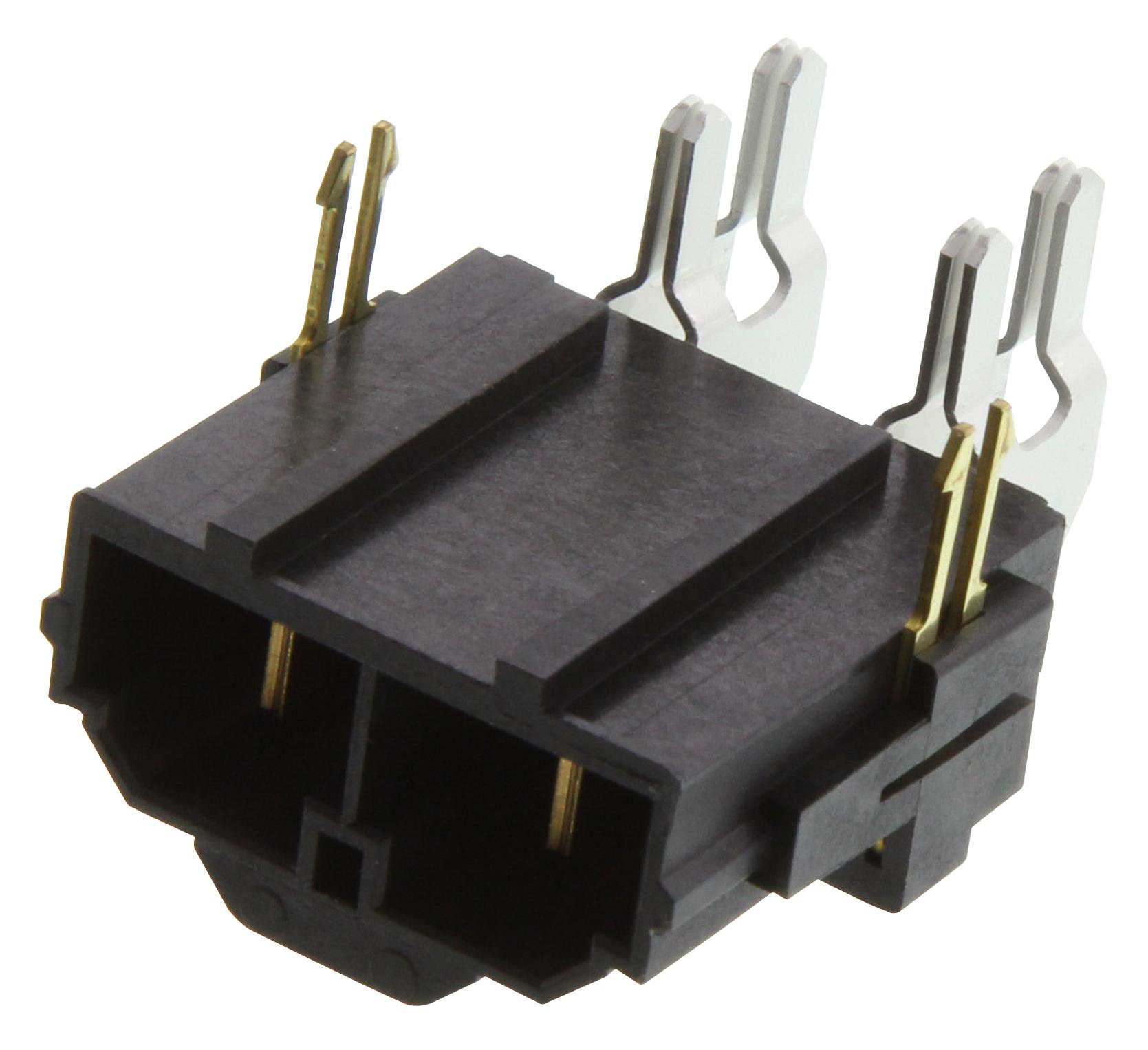

MOLEX 39288220 Mini-Fit Jr. Power Connector
The MOLEX 39-28-8220 is a Mini-Fit Jr. Power Connector, a robust solution for wire-to-board applications. This vertical header features 22 circuits and is designed for use with standard Mini-Fit female terminals. It offers a maximum current rating of 9.0A per contact and a maximum voltage of 600V. The header is tin-plated for enhanced conductivity and durability, and its vertical orientation simplifies integration into PCB designs. For increased amperage requirements, consider using Mini-Fit Plus HCS terminals. Refer to Molex product specification PS-5666-001 for current de-rating information.
MOLEX 39288220 Mini-Fit Jr. Power Connector Specifications:
- Circuits (Loaded): 22
- Circuits (maximum): 22
- Durability (mating cycles max): 30
- Flammability: 94V-0
- Guide to Mating Part: None
- Lock to Mating Part: Yes
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Number of Rows: 2
- Orientation: Vertical
- PC Tail Length: 3.50mm
- PCB Locator: Yes
- PCB Thickness - Recommended: 1.60mm
- Pitch - Mating Interface: 4.20mm
- Pitch - Termination Interface: 4.20mm
- Plating min - Mating: 0.889µm
- Plating min - Termination: 0.889µm
- Polarized to Mating Part: Yes
- Polarized to PCB: Yes
- Shrouded: Fully
- Stackable: No
- Surface Mount Compatible (SMC): No
- Temperature Range - Operating: -40° to +105°C
- Termination Interface Style: Through Hole
- Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- Lead-freeProcess Capability: WAVE
- Process Temperature max. C: 240
- Engineering Number: 5566-22A-210
Buy the 39-28-8220 MOLEX Mini-Fit Jr. Power Connector | myMectronic
Purchase the MOLEX 39-28-8220 Mini-Fit Jr. Power Connector securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 39288220?
You can click on the BUY or RFQ button to purchase 39288220 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 39288220?
You can download the 39288220 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 39288220?
MOLEX
