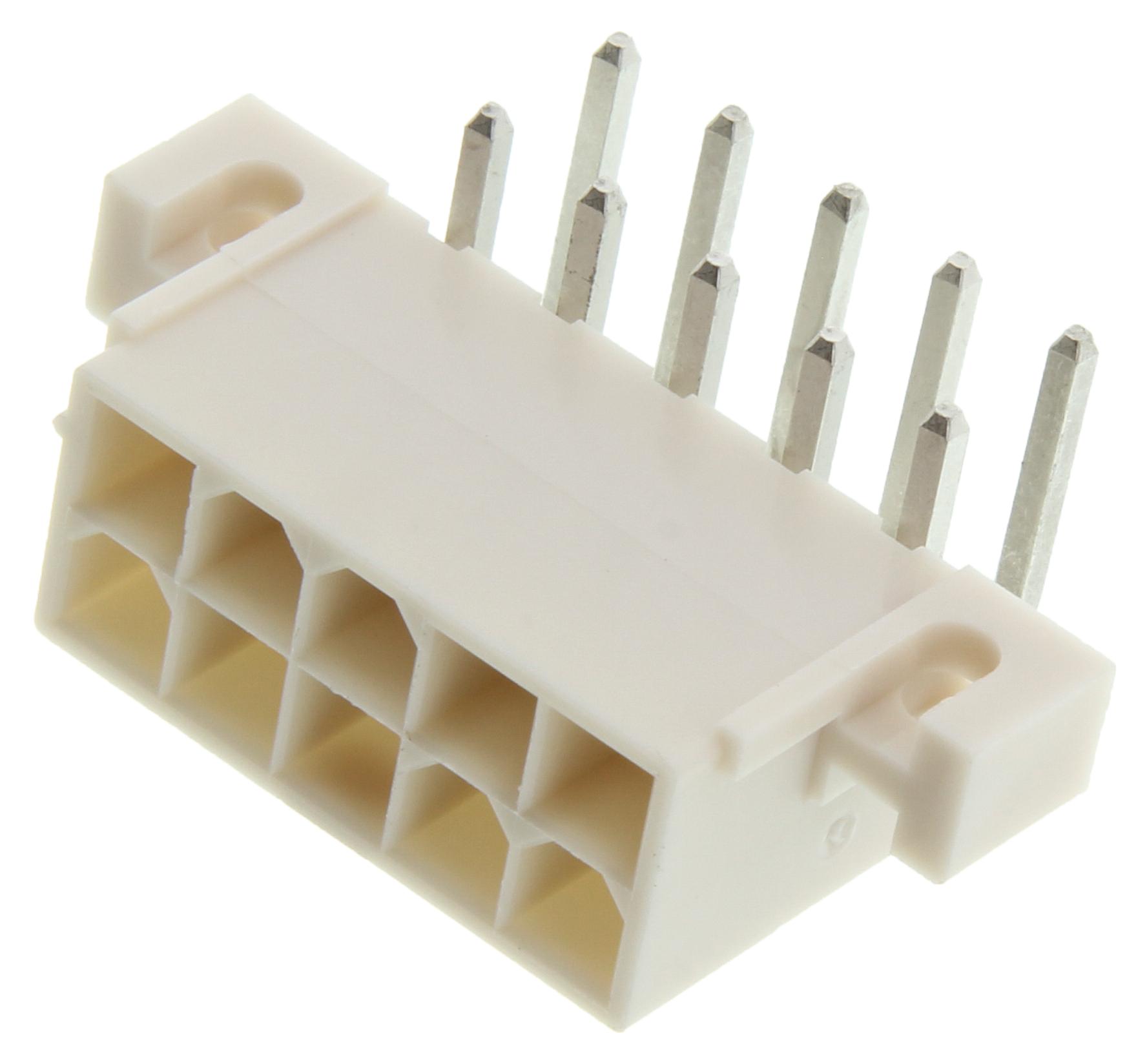

MOLEX 39291107 Power Connector
The MOLEX 39-29-1107 is a Mini-Fit Jr. power connector, ideal for applications requiring a robust and reliable connection between wires and printed circuit boards. Its right-angle design and PCB mounting flange simplify integration into various electronic assemblies. Constructed with a polyamide nylon 6/6 94V-0 resin and tin plating, this connector offers excellent durability and corrosion resistance. It is commonly used in power supplies, industrial equipment, and automotive applications where a secure and efficient power transfer is essential. Refer to Molex product specifications PS-5556-001 for detailed current de-rating information.
MOLEX 39291107 Power Connector Specifications:
- Product Family: PCB Headers
- Series: 5569
- Application: Power, Wire-to-Board
- Circuits (Loaded): 10
- Circuits (maximum): 10
- Flammability: 94V-0
- Durability (mating cycles max): 30
- Material - Resin: Nylon
- Material - Plating Mating: Matte Tin
- Material - Plating Termination: Matte Tin
- Orientation: Right Angle
- PCB Locator: Yes
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.78mm
- Pitch - Mating Interface: 4.20mm
- Pitch - Termination Interface: 4.20mm
- Plating min - Mating: 2.540µm
- Plating min - Termination: 2.540µm
- Current - Maximum per Contact: 13.0A
- Voltage - Maximum: 600V
- Temperature Range - Operating: -40° to +105°C
- Termination Interface: Style: Through Hole
- Engineering Number: 5569-10A1-210
