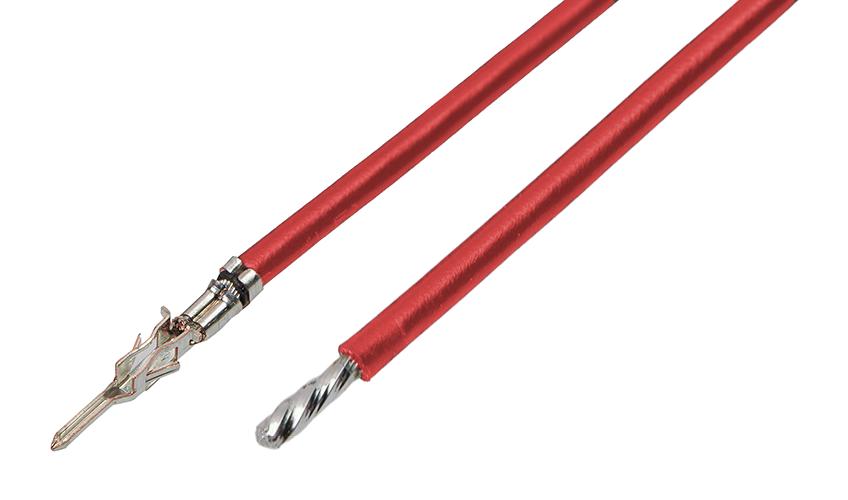

MOLEX 2147632212 Micro-Fit 3.0 Male-to-Pigtail
The Micro-Fit 3.0 Male-to-Pigtail is a pre-crimped lead designed for Power applications, featuring gold-plated contacts, a 150mm length, and 20 AWG wire size. It provides reliable connection for wire-to-wire assemblies with a maximum current of 8.5A and a crimp or compression termination interface. Suitable for use with Micro-Fit 3.0 plug housings and BMI plug housings, this pigtail ensures durability and compliance with RoHS standards for environmentally conscious projects. Its compact design and high-quality materials make it ideal for various power distribution needs.
MOLEX 2147632212 Micro-Fit 3.0 Male-to-Pigtail Specifications:
- Wire Size: 20 AWG
- Cable Length: 150.00mm
- Color: Red
- Gender: Male-Pigtail
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Current - Maximum per Contact: 8.5A
- Termination Interface: Crimp or Compression
- Wire Insulation Diameter: 1.85mm max.
- Certification: UL 10002
- RoHS Compliant, China RoHS, Reach SVHC: Not Contained
- Applicable with Micro-Fit 3.0 plug housings and BMI plug housings
- Net Weight: 1.138g
- Status: Active
- Application: Power, Wire-to-Wire
- Series: 214763
Buy the Buy Molex Micro-Fit 3.0 Part Number 2147632212 Online
Discover the Molex Micro-Fit 3.0 Male-to-Pigtail, a reliable power connector featuring 20 AWG wire, gold-plated contacts, and a 150mm length for secure, efficient wire-to-wire connections. Designed for power distribution, it supports current up to 8.5A and offers easy crimp or compression termination interfaces. Compatible with Micro-Fit 3.0 plug housings and BMI housings, this environmentally friendly, RoHS-compliant pigtail guarantees durability and high performance for industrial, electronic, and automation applications. Buy online today for trusted quality and quick delivery.
Buy Molex 2147632212 now and experience unmatched reliability and high-quality power connections with gold-plated contacts and proven durability.
