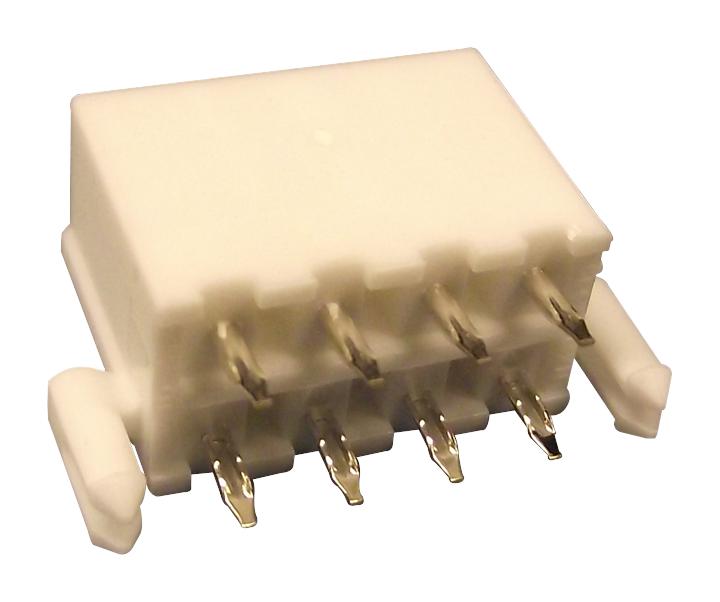

MOLEX 39299085 Power Connector
The Mini-Fit Jr. Power Connector with part number 39299085 is a versatile vertical header featuring a 4.20mm pitch, dual row configuration, and 8 circuits, ideal for wire-to-board applications. It has a shrouded fully polarized design, operates within a temperature range of -40°C to +105°C, and is compliant with RoHS, EU ELV, and China RoHS standards. Constructed with durable materials including matte tin plating on nylon, it supports up to 9A per circuit at 600V, with a PCB thickness recommendation of 1.60mm and a surface mount compatible interface.
MOLEX 39299085 Power Connector Specifications:
- Pitch: 4.20mm
- Number of circuits: 8
- Configuration: Dual row, shrouded fully polarized
- Material: Nylon with matte tin plating
- Current rating: 9.0A per contact
- Maximum voltage: 600V
- Operating temperature: -40°C to +105°C
- PCB thickness: 1.60mm recommended
- Termination style: Through hole
- Color: Natural
- Durability: Supports multiple mating cycles, with PCB retention
- RoHS, EU ELV, China RoHS compliant
- Surface Mount Compatibility: No
- Stackable: No
- Guide to mating: with 5557 Mini-Fit Jr. receptacle housing
- Package: Tray
- Plating min - Mating: 0.762μm
- Plating min - Termination: 2.540μm
- Temperature range - Operating: -40°C to +105°C
Buy the Buy Molex Mini-Fit Jr. Power Connectors Part Number 39299085 Online
Enhance your electronic assemblies with the Molex Mini-Fit Jr. power connector featuring 8 circuits, a 4.20mm pitch, and full polarization. This durable, RoHS-compliant connector supports up to 9A per contact at 600V, ensuring reliable power distribution in system designs. Its fully shrouded, polarized design ensures secure mating, while the through-hole termination makes it suitable for various PCB layouts. Easy to install and designed for multiple mating cycles, this connector is essential for engineers seeking high-quality, compliant power connectors for diverse applications.
Order your Molex Series5566 39299085 power connector today and ensure reliable power connections for your electronic projects with top-quality components.
Frequently Asked Questions
Where can I buy MOLEX 39299085?
You can click on the BUY or RFQ button to purchase 39299085 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 39299085?
You can download the 39299085 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 39299085?
MOLEX
