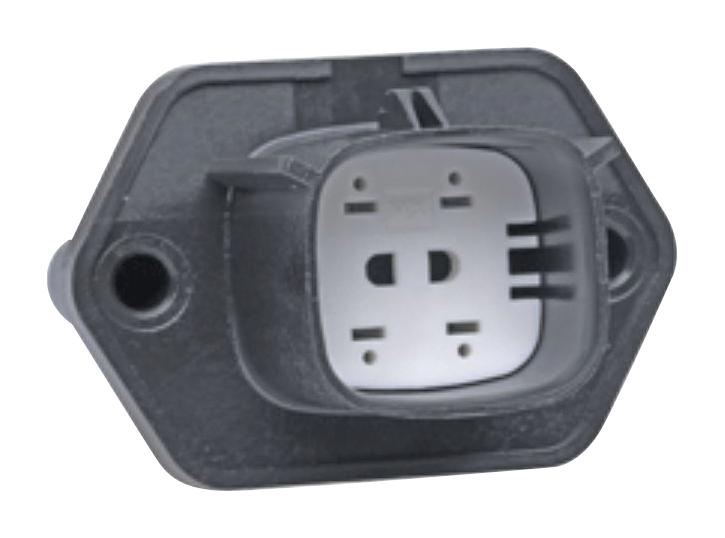

MOLEX 194360411 Industrial Sealed Power Connector
The MX150L 4 Circuit Rear Mount Flange Sealed Panel Mount Plug is designed for 10-12 AWG wire, featuring a sealed IP67 rating and a black resin body. It includes a gasket for secure sealing, making it suitable for industrial environments. This connector is polarized to ensure correct mating, with a maximum current of 40.0A per contact. Operable from -40°C to +125°C, it is ideal for power applications requiring reliable sealing and high current capacity in demanding conditions. It's compatible with a corresponding receptacle for secure connections in industrial systems.
MOLEX 194360411 Industrial Sealed Power Connector Specifications:
- Number of Circuits: 4
- Color - Resin: Black
- Gender: Plug
- Mounting Style: Panel Mount
- Temperature Range - Operating: -40°C to +125°C
- Current - Maximum per Contact: 40.0A
- Ingress Protection: IP67
- RoHS Compliant: Yes
- Material: Black resin with gasket
- Pitch - Mating Interface: 7.62mm
- Pitch - Termination Interface: 7.62mm
- Polarized to Mating Part: Yes
Buy the Molex Series MX150L Power Connector: 0194360411
Secure your industrial power connections with the Molex MX150L sealed panel mount plug. Designed for 10-12 AWG wire, it features IP67 ingress protection, a 40A current capacity, and operates reliably from -40°C to +125°C. Its polarized design ensures correct mating, minimizing connection errors. Constructed with durable black resin and equipped with a gasket for enhanced sealing, this connector is ideal for demanding environments requiring robust, weatherproof power possibly in automation, machinery, and industrial control systems. Buy online for fast, reliable delivery.
Buy Molex MX150L 0194360411 now and experience unmatched reliability and high current performance for industrial power connections.
