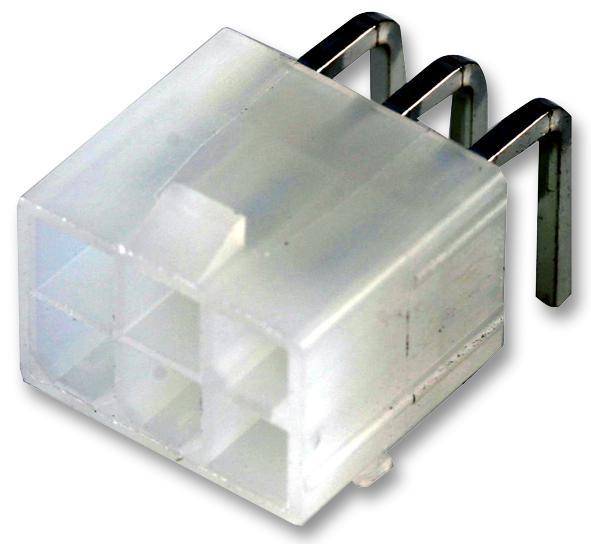

MOLEX 39301160 Power Connector
The Mini-Fit Jr. Power Connectors are durable, high-current wire-to-board connectors designed for reliable power transmission in various electronic applications. Featuring a dual-row, right-angle design with a snap-in plastic PCB lock, these connectors support up to 13A per circuit and are rated for 600V. Made from PA Polyamide Nylon 6/6 with matte tin plating, they ensure excellent corrosion resistance and mechanical strength. Suitable for power and wiring systems, they are compatible with 16 AWG wire and support multiple mating cycles, making them ideal for compact, high-current assemblies requiring secure, long-lasting connections.
MOLEX 39301160 Power Connector Specifications:
- Current: 13A max per circuit when mated
- Voltage rating: 600V
- Material - Metal: Brass
- Material - Plating Mating: Matte Tin
- Material - Plating Termination: Matte Tin
- Material - Resin: PA Polyamide Nylon 6/6
- Color - Resin: Not specified
- Mating interface pitch: 4.20mm
- Termination interface pitch: 2.54mm
- Durability: Up to 50 mating cycles
- Operating temperature: -40°C to +105°C
- Orientation: Right Angle
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.78mm
- Number of Rows: 2
- Guide to Mating Part: 5557 Mini-Fit Jr. Receptacle Housing
- Certification: CSA, UL
- Solder process: Wave soldering compatible with max process temp 240°C for 4 seconds
Buy the Buy Molex Mini-Fit Jr. Power Connector Part Number 0039301160 Online
Order the Molex Mini-Fit Jr. Power Connector online today and experience reliable power delivery in your electronic projects. Designed with a dual-row, right-angle configuration and a snap-in lock, this connector supports up to 13A per circuit at 600V. Constructed from high-quality PA Polyamide Nylon 6/6 with matte tin plating, it offers excellent durability, corrosion resistance, and long-lasting connection performance. Ideal for compact power systems, wire-to-board applications, and high-reliability projects requiring secure, long-term electrical contact with up to 50 mating cycles, ensuring your projects stay powered efficiently.
Get Molex 0039301160 today—engineered for high-current power applications with durable plastic lock and reliable contact quality.
Frequently Asked Questions
Where can I buy MOLEX 39301160?
You can click on the BUY or RFQ button to purchase 39301160 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 39301160?
You can download the 39301160 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 39301160?
MOLEX
