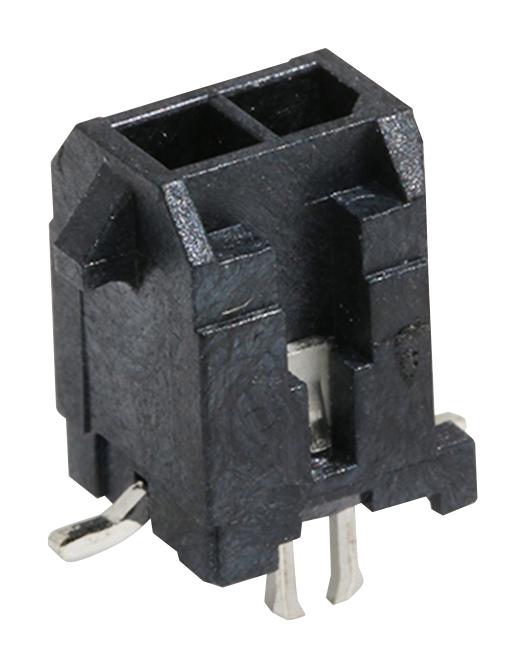

MOLEX 430450215 High-Temperature Power Connector
This high-temperature vertical header from the Micro-Fit 3.0 connector system features a 3.00mm pitch, dual-row configuration with two circuits, and PCB press-fit termination. Made from flame-retardant thermoplastic, it ensures safety and durability with a maximum operating temperature of -40°C to +105°C. The metal components include brass with tin plating, providing reliable electrical contact and corrosion resistance. This shrouded, stackable connector is ideal for power and wire-to-board applications, with a maximum current of 8.5A and voltage rating of 600V. Certified for UL and CSA standards, it supports up to 30 mating cycles.
MOLEX 430450215 High-Temperature Power Connector Specifications:
- Pitch: 3.00mm
- Number of Rows: 2
- Circuits (Maximum): 2
- Color - Resin: Black
- Flammability: UL 94V-0
- Material - Metal: Brass
- Material - Plating: Tin
- Material - Resin: High Temperature Thermoplastic
- Temperature Range - Operating: -40° to +105°C
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Mating Cycles (Maximum): 30
- Orientation: Vertical
- PCB Thickness - Recommended: 1.60mm
- Packaging Type: Embossed Tape on Reel
- Surface Mount Compatible: Yes
- Glow-Wire Capable: Yes
- Mated Height: 17.64mm
- PCB Retention: Yes
- PCB Locator: Yes
- Termination Interface: Solder
- Process Temperature Max: 260°C
- Lead-Free Process Capability: Reflow
Buy the Molex 4300450215 – Reliable High-Temperature Power Connector for Industrial Applications
Enhance your industrial power and wire-to-board connections with this high-temperature, dual-row connector featuring a 3.00mm pitch, press-fit PCB termination, and UL/CSA certification. Designed for durability, it supports up to 30 mating cycles and operates reliably from -40°C to +105°C. Made from flame-retardant thermoplastic and brass with tin plating, ensuring corrosion resistance and excellent electrical contact. Ideal for power supplies, automation, and control systems, this connector offers easy mounting and dependable performance for demanding industrial applications.
Buy Molex 4300450215 now and experience unmatched reliability, high-temperature performance, and long-lasting power connectivity in industrial environments.
Frequently Asked Questions
Where can I buy MOLEX 430450215?
You can click on the BUY or RFQ button to purchase 430450215 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 430450215?
You can download the 430450215 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 430450215?
MOLEX
