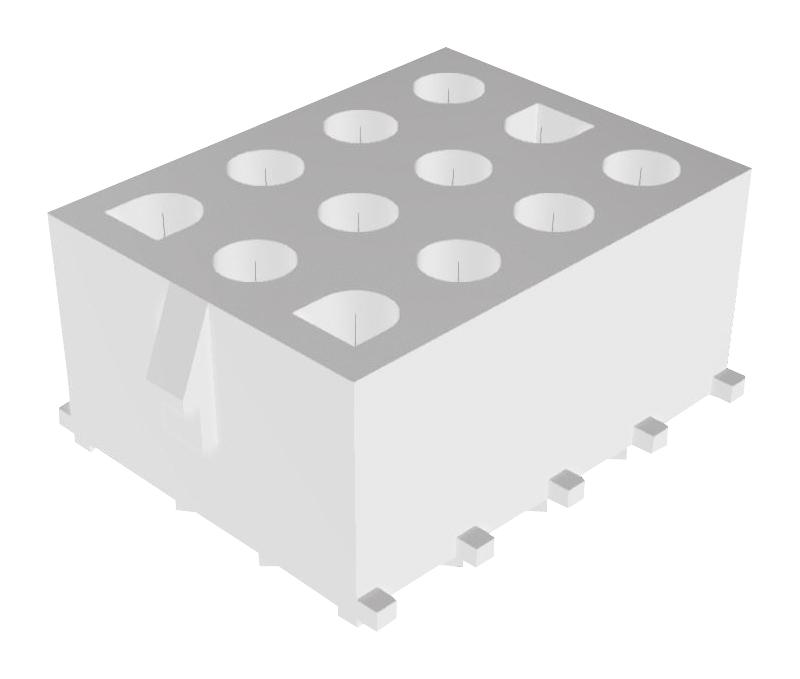

MOLEX 10844122 MLX Power Connector
The MOLEX 10-84-4122 is a robust MLX Power Connector engineered for demanding wire-to-board connections. With a 6.35mm pitch and 12 circuits, it provides reliable power transmission in applications requiring high vibration resistance. Constructed from PA Polyamide (Nylon) 6/6 and featuring tin plating for both mating and termination interfaces, this connector ensures excellent conductivity and durability. It's ideal for power applications and is designed for vertical mounting on PCBs.
MOLEX 10844122 MLX Power Connector Specifications:
- overview: MLX Power Connectors
- description: 6.35mm Pitch MLX Power Connector, 2.13mm Contact Diameter, Vertical, PA Polyamide (Nylon) 6/6, Tin (Sn), White, 12 Circuits
- application: Power, Wire-to-Board
- circuits_loaded: 12
- circuits_maximum: 12
- color_resin: Natural
- durability_mating_cycles: 50
- flammability: 94V-2
- glow_wire_capable: No
- lock_to_mating_part: Yes
- material_metal: Phosphor Bronze
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: Nylon
- net_weight_g: 6.680
- number_of_rows: 3
- orientation: Vertical
- pc_tail_length_mm: 4.30
- pcb_retention: None
- pcb_thickness_recommended_mm: 0.90
- packaging_type: Carton
- pitch_mating_interface_mm: 6.35
- polarized_to_pcb: Yes
- surface_mount_compatible: No
- temperature_range_operating_c: -55° to +105°
- termination_interface_style: Through Hole
- current_maximum_per_contact_a: 13.5, 20.0
- voltage_maximum_v: 600
- lead_free_process_capability: WAVE
- process_temperature_max_c: 260
- material_info_engineering_number: A-42002-12A2A1
- upc: 800753610552
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
