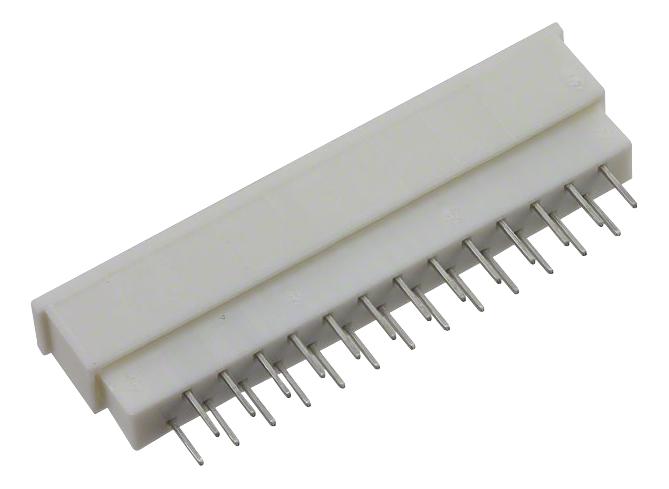

MOLEX 39532305 FFC/FPC Connector
The 1.25mm Pitch Easy-On FFC/FPC Connector is designed for reliable vertical through-hole connections with a ZIF actuator, supporting up to 30 circuits. Constructed with phosphor bronze and tin-bismuth plating for durability and corrosion resistance, it features a natural-colored polyester housing and a mated height of 7.50mm. Suitable for applications requiring a maximum current of 1.0A and voltage of 200V, it operates within -20°C to +80°C. Packaged in trays, this connector ensures easy installation and robust performance for electronic assemblies.
MOLEX 39532305 FFC/FPC Connector Specifications:
- Pitch: 1.25mm
- Number of Circuits: 30
- Configuration: Through-Hole, Vertical, ZIF
- Material - Metal: Phosphor Bronze
- Material - Plating Mating & Termination: Tin-Bismuth
- Resin Material: Polyester
- Color - Resin: Natural
- Mated Height: 7.50mm
- PCB Mounting: Through Hole
- Operating Temperature: -20°C to +80°C
- Maximum Current per Contact: 1.0A
- Maximum Voltage: 200V
- Packaging: Tray
- Durability: 30 mating cycles
- Flammability: 94V-0
- RoHS Compliance: Yes
- UL Certification: E29179
Buy the Buy Molex 1.25mm Pitch Easy-On FFC-FPC Connector Part Number 0039532305 Online
Purchase the Molex FFC/FPC connector online today and enjoy seamless installation with its easy-on design, vertical through-hole mounting, and ZIF actuator. Engineered with high-quality phosphor bronze and tin-bismuth plating, this connector offers excellent longevity and corrosion resistance. Its 1.25mm pitch, 30 circuits capacity, and operating temperature range of -20°C to +80°C make it ideal for a wide range of electronic applications. Packaged in trays, it ensures quick, secure, and hassle-free mounting in your manufacturing process.
Buy Molex 0039532305 now and experience reliable connections with high durability, perfect for your electronic assembly needs.
