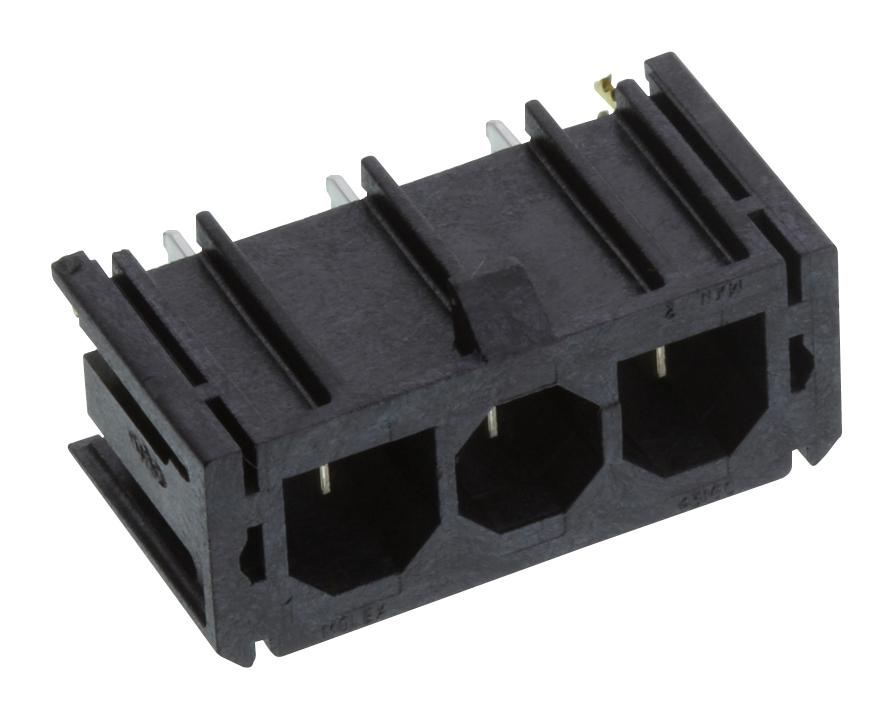

MOLEX 1720420302 Super Sabre Vertical Header
The MOLEX 172042-0302 Super Sabre Vertical Header is a robust solution for wire-to-board connectivity. Designed with a 3-circuit configuration and a short solder tail, it provides a secure and reliable connection. The integrated board lock mechanism enhances stability, while compliance with UL1977 finger proof standards ensures safety. This header is ideal for applications requiring high-performance and secure connections in various industrial settings.
MOLEX 1720420302 Super Sabre Vertical Header Specifications:
- overview: Super Sabre Connector System
- description: Super Sabre Vertical Header, 3 Circuit, Short Solder Tail with Board Lock, Complies with the UL1977 finger proof standards
- series: 172042
- application: Power, Signal, Wire-to-Board
- circuits_loaded: 3
- circuits_maximum: 3
- color_resin: Black
- durability_mating_cycles: 25
- first_mate_last_break: No
- flammability: 94V-0
- glow_wire_capable: Yes
- lock_to_mating_part: Yes
- material_metal: Copper
- material_plating_mating: Silver
- material_plating_termination: Matte Tin, Nickel
- material_resin: High Temperature Thermoplastic
- net_weight_g: 4.223
- number_of_rows: 1
- orientation: Vertical
- pc_tail_length_mm: 3.81
- pcb_retention: Yes
- packaging_type: Tray
- pitch_mating_interface_mm: 7.50
- plating_min_mating_um: 0.025
- plating_min_termination_um: 0.025
- polarized_to_mating_part: Yes
- surface_mount_compatible: Yes
- temperature_range_operating_c: -40° to +125°
- termination_interface_style: Through Hole
- current_max_per_contact_a: 30.0
- voltage_max_ac_rms: 600V
- max_process_temp_cycles: 3
- max_process_temperature_c: 260
- reach_svhc: Not Contained
