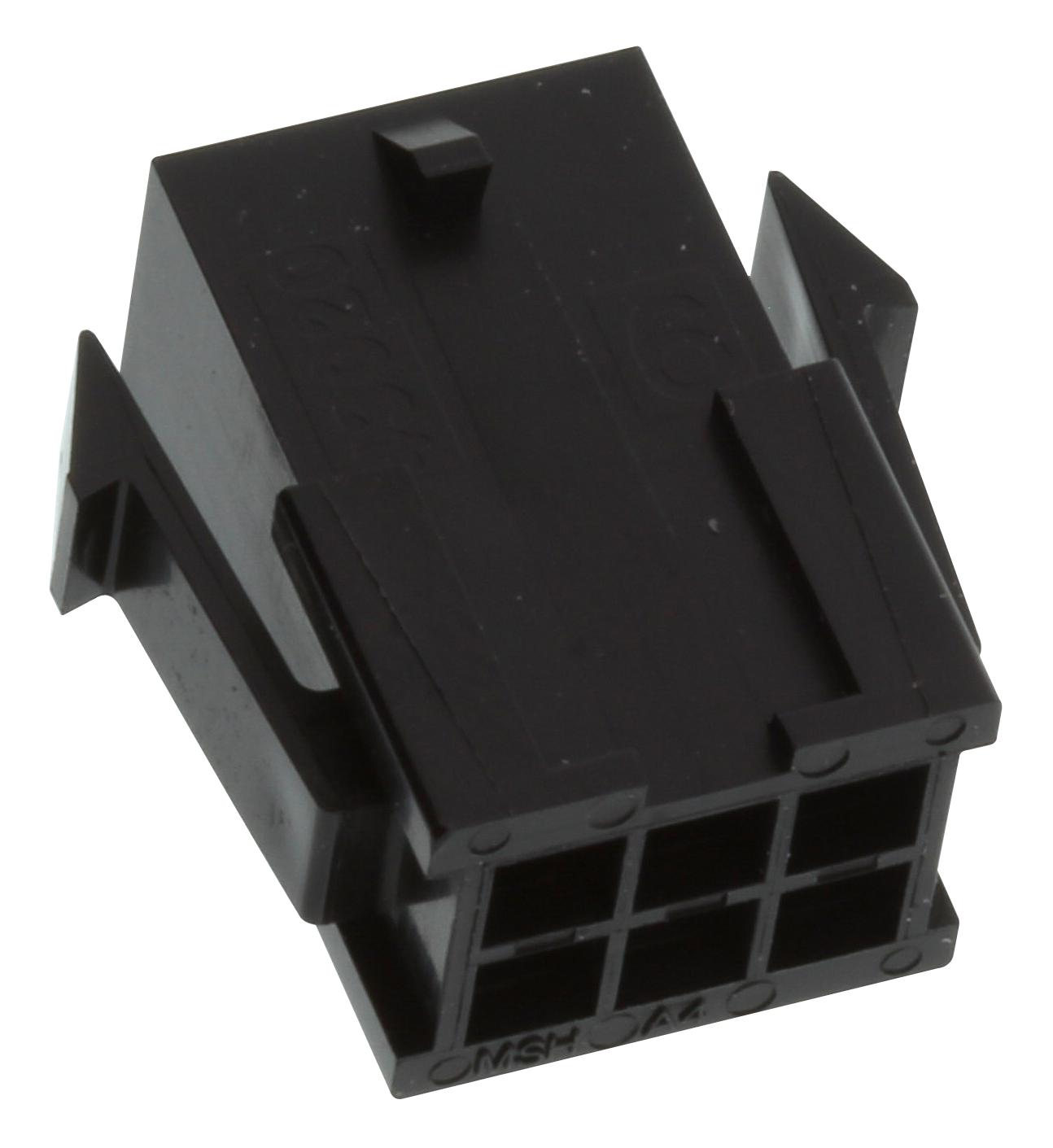

MOLEX 430200608 Micro-Fit 3.0 Plug Housing
The MOLEX 43020-0608 Micro-Fit 3.0 Plug Housing is a robust connector solution for various wire-to-wire applications. This housing, part of the Micro-Fit 3.0 Connector System, offers 6 circuits and is constructed from durable nylon resin. Its panel mount design allows for secure attachment to enclosures or boards. Compliant with UL 94V-0 flammability standards and featuring low halogen content, this connector is suitable for a wide range of industrial and commercial applications where reliable power transmission is essential.
MOLEX 430200608 Micro-Fit 3.0 Plug Housing Specifications:
- overview: Micro-Fit 3.0 Connector System
- description: Micro-Fit 3.0 Plug Housing, Dual Row, 6 Circuits, UL 94V-0, Panel Mount Ears, LowHalogen Since Inception
- circuits_maximum: 6
- color_resin: Black
- flammability: 94V-0
- gender: Plug
- glow_wire_capable: No
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- material_resin: Nylon
- net_weight_g: 0.948
- number_of_rows: 2
- packaging_type: Bag
- panel_mount: Yes
- pitch_mating_interface_mm: 3.00
- pitch_termination_interface_mm: 3.00
- polarized_to_mating_part: Yes
- stackable: No
- temperature_range_operating_c: -40° to +105°
- halogen_free_status: Low-Halogen
- reach_svhc: Not Contained
- series: 43020
- mates_with: Micro-Fit 3.0 Receptacle Housings 43025, Micro-Fit 3.0 Cable Assembly 245132
- use_with: Micro-Fit 3.0 Male Crimp Terminals 43031
Buy the 43020-0608 MOLEX Micro-Fit 3.0 Plug Housing | myMectronic
Purchase the MOLEX 43020-0608 Micro-Fit 3.0 Plug Housing securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 430200608?
You can click on the BUY or RFQ button to purchase 430200608 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 430200608?
You can download the 430200608 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 430200608?
MOLEX
