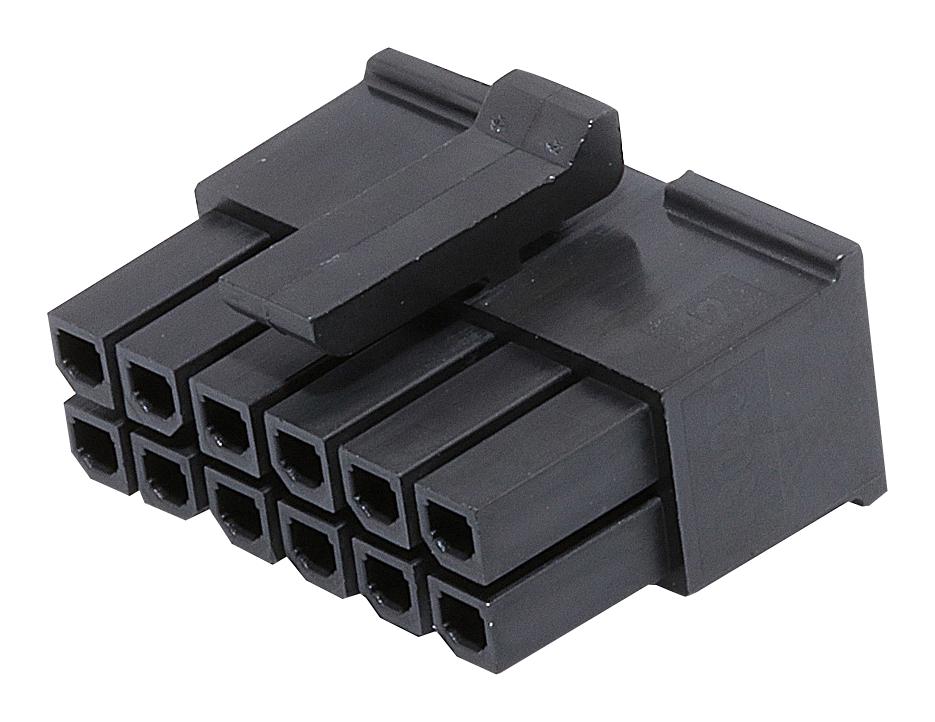

MOLEX 430251210 Micro-Fit 3.0 Receptacle Housing
The MOLEX 43025-1210 Micro-Fit 3.0 receptacle housing is a robust connector solution for various applications including power distribution, wire-to-board connections, and wire-to-wire harnesses. Constructed from durable nylon resin, this housing is rated UL 94V-2 and exhibits glow-wire capability, ensuring safety and reliability in demanding environments. It accommodates 12 circuits and is designed to mate with Micro-Fit 3.0 plug housings, headers, and test plugs, offering versatility in system design. Customers should perform suitability testing to ensure proper performance in their specific application.
MOLEX 430251210 Micro-Fit 3.0 Receptacle Housing Specifications:
- Circuits (maximum): 12
- Color - Resin: Black
- Flammability: 94V-2
- Gender: Receptacle
- Glow-Wire Capable: Yes
- Keying to Mating Part: None
- Lock to Mating Part: Yes
- Material - Resin: Nylon
- Net Weight: 1.044/g
- Number of Rows: 2
- Packaging Type: Bag
- Panel Mount: No
- Pitch - Mating Interface: 3.00mm
- Polarized to Mating Part: Yes
- Stackable: No
- Temperature Range - Operating: -40° to +105°C
- Material Info Reference - Drawing Numbers: Application Specification 430250000-AS-000, Packaging Specification PK-43025-001-001, Product Specification PS-43045, PS-43045-001, TS-43045-001-001, TS-46235-001-001, Sales Drawing SD-43025-002-001
