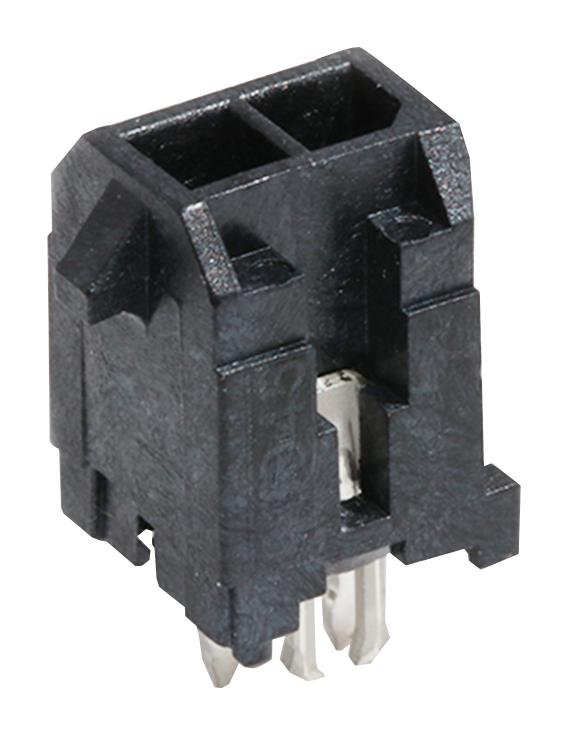

MOLEX 430450226 Micro-Fit Connector
The Micro-Fit 3.0 Vertical Header with 3.00mm pitch is designed for power and signal applications requiring reliable wire-to-board connectivity. It features dual rows, 2 circuits, and a PCB press-fit contact, with high-temperature, halogen-free thermoplastic housing. Made from durable materials with gold-plated contacts, this connector supports up to 8.5A and 600V, ensuring safety and robustness in demanding industrial environments. Its compact design allows for easy installation, with a maximum of 30 mating cycles, making it suitable for various electronic and power system applications.
MOLEX 430450226 Micro-Fit Connector Specifications:
- Pitch: 3.00mm
- Number of Rows: 2
- Circuits (Loaded): 2
- Maximum Circuits: 2
- Color - Resin: Black
- Durability (mating cycles max): 30
- Flammability: UL 94V-0
- Glow-Wire Capable: Yes
- Mated Height: 17.64mm
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Net Weight: 0.584g
- Orientation: Vertical
- PCB Thickness - Recommended: 1.60mm
- Temperature Range - Operating: -40°C to +105°C
- Electrical: Current - Max per Contact: 8.5A, Voltage - Max: 600V
- Process Temperature Max.: 260°C
- Process Capability: Lead-free, 30 mating cycles
- Packaging Type: Tray
- Solder Process Data: 030 (SMC&WAVE)
- Reference - Drawing Numbers: TS-43045-002-001, PS-43045, TS-43045-001-001, TS-46235-001-001
- Product Specification: PS-43045, PS-43045-001
- RoHS & REACH Compliant: Yes
Buy the Molex 0430450226 – Reliable Power Connection for Industrial Applications
Experience high-quality and reliable power connections with the Micro-Fit 3.0 connector system. Designed for power and signal applications, it offers a compact, durable, and high-temperature rated solution. With gold-plated contacts and a press-fit PCB interface, this connector ensures excellent electrical performance and easy installation. Its robust design supports up to 8.5A and 600V, making it ideal for industrial, automation, and electronic systems needing secure wire-to-board connections. Buy online today for dependable performance in your projects.
Get Molex 0430450226 today—built for precision and long-lasting durability in power and signal connections.
