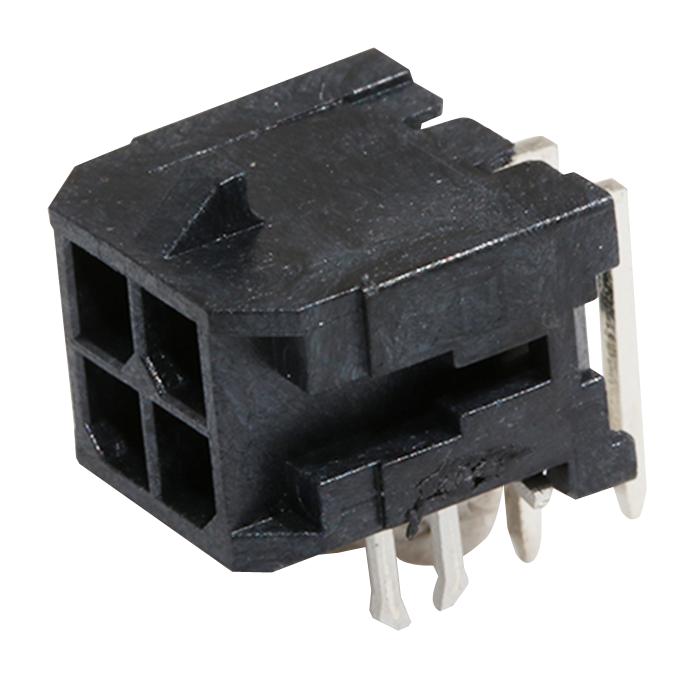

MOLEX 430450423 Power Connector
The Micro-Fit 3.0 Right-Angle Header is a 3.00mm pitch, dual-row power connector designed for PCB wiring with a high-temperature thermoplastic body. It features a metal press-fit PCB retention clip, gold-plated contacts, and is glow-wire capable, ensuring fire safety compliance. Suitable for applications requiring high current capacity of 8.5A and voltage up to 600V, it supports up to 30 mating cycles, with a mated height of 10.06mm. Its durable construction with tin-plated brass and compatibility with surface-mount or through-hole assembly makes it ideal for industrial electronics and power distribution systems.
MOLEX 430450423 Power Connector Specifications:
- Pitch: 3.00mm
- Number of Circuits: 4
- Max Circuits: 4
- Color: Black
- Mated Height: 10.06mm
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Durability: 30 mating cycles
- Flammability: 94V-0
- Glow-Wire Capable: Yes
- Operating Temperature Range: -40°C to +105°C
- Termination Interface: Through Hole or SMC
- Current per Contact: 8.5A
- Voltage: 600V
- PCB Thickness - Recommended: 1.60mm
- Packaging: Tray
- Package Pitch - Mating Interface: 3.00mm
Buy the Molex 0430450423 – Reliable Power Connector for Industrial Applications
Get the Molex power connector series 0430450423 online today for your industrial and electronic power distribution needs. This high-current, 3.00mm pitch dual-row connector features gold-plated contacts, glow-wire capability, and a durable thermoplastic body suited for demanding applications. Supports up to 8.5A per circuit, with a maximum voltage of 600V, and can withstand 30 mating cycles. Perfect for PCB wiring in industrial machinery, automation, and power supply systems, ensuring safety, reliability, and long-term performance.
Order your Molex Series 0430450423 power connector today and ensure reliable, high-current connections for your industrial projects.
Frequently Asked Questions
Where can I buy MOLEX 430450423?
You can click on the BUY or RFQ button to purchase 430450423 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 430450423?
You can download the 430450423 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 430450423?
MOLEX
