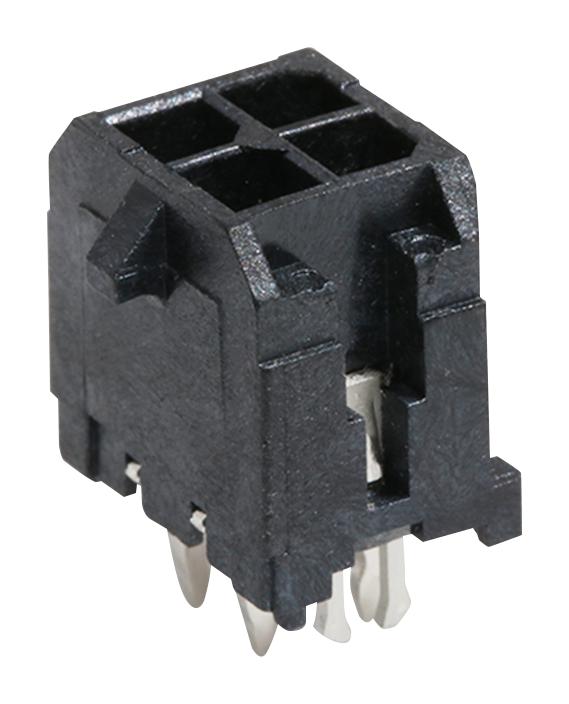

MOLEX 430450424 Power Connector
The Micro-Fit 3.0 Vertical Header is a versatile power and signal connector ideal for wire-to-board applications. With a 3.00mm pitch, dual-row design, and four circuits, it features PCB press-fit capability, tin-plated brass contacts, and high-temperature thermoplastic housing. Suitable for operating temperatures from -40°C to +105°C, it ensures reliable electrical connections with a maximum current of 8.5A per contact and a maximum voltage of 600V. Its durable design supports up to 30 mating cycles, making it well-suited for demanding industrial and electronic power systems.
MOLEX 430450424 Power Connector Specifications:
- Pitch: 3.00mm
- Number of rows: 2
- Circuits: 4
- Color - Resin: Black
- Mating cycles max: 30
- Flammability: 94V-0
- Glow-Wire Capable: Yes
- Material - Metal: Brass
- Material - Plating: Tin
- Material - Resin: High Temperature Thermoplastic
- Termination: PCB press-fit
- Maximum current per contact: 8.5A
- Maximum voltage: 600V
- Operating temperature: -40°C to +105°C
- Mated height: 17.64 mm
- Durability: 30 mating cycles
- Resistance to heat and fire: IEC 60335-1 compliant
- PCB thickness - recommended: 1.60mm
- Packaging: Tray
- Orientation: Vertical
- Surface Mount Compatible: No
- Shrouded: No
- Stackable: No
Buy the Molex Series Micro-Fit 3.0 Power Connector: 430450424
Secure your electronic projects with this high-quality power and signal connector featuring a 3.00mm pitch, dual-row, four circuits, and press-fit design. Made from durable high-temperature thermoplastic and tin-plated brass contacts, it is capable of withstanding temperatures from -40°C to +105°C while delivering up to 8.5A per contact at 600V. Its robust construction supports 30 mating cycles, ideal for industrial power systems. Effortlessly order online and ensure reliable, safe, and efficient connections for your electronic assemblies.
Buy Molex 430450424 now and experience unmatched reliability and high-temperature performance in power and signal connections.
Frequently Asked Questions
Where can I buy MOLEX 430450424?
You can click on the BUY or RFQ button to purchase 430450424 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 430450424?
You can download the 430450424 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 430450424?
MOLEX
