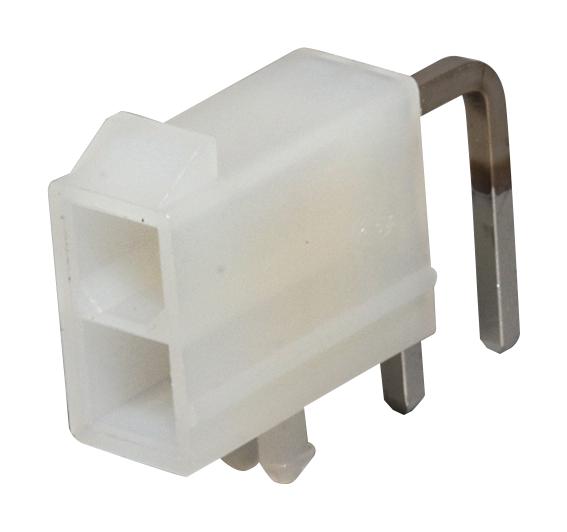

MOLEX 26013114 Power Connector
The Molex ini-Fit Jr. Power Connector is a compact, dual-row, right-angle header designed for PCB applications. Made from durable PA Polyamide Nylon 6/6 with 94V-2 flammability rating, it features 2 circuits with gold-plated contacts, ensuring reliable electrical performance up to 13A per circuit at 600V. The connector includes a snap-in plastic peg for secure PCB locking and offers a mating interface pitch of 4.20mm. Suitable for low-profile, high-current power connections, it supports up to 100 mating cycles and operates reliably within -40°C to +105°C temperature range. Its shrouded, polarized design enhances mating safety and ease of assembly.
MOLEX 26013114 Power Connector Specifications:
- Number of Circuits: 2
- Contact Material: Matte Tin plated Copper Alloy
- Flammability Rating: UL 94V-2
- Voltage Rating: 600V
- Current per Circuit: 13A max
- Temperature Range: -40°C to +105°C
- Material: PA Polyamide Nylon 6/6
- Plating - Mating: 0.381um gold
- Plating - Termination: 2.540um gold
- Orientation: Right Angle
- Pitch - Mating Interface: 4.20mm
- Overall Length: 3.60mm
- PCB Tail Length: 1.78mm
- PCB Thickness - Recommended: Not Relevant
- PC Tail Length: 3.60mm
- Net Weight: 0.867g
Buy the Buy Molex ini-Fit Jr. Power Connectors Part Number 0026013114 Online
Purchase the Molex ini-Fit Jr. Power Connector online today to ensure a secure, reliable electrical connection in your PCB designs. This dual-row, right-angle connector features 2 circuits with gold-plated contacts rated for 13A at 600V, making it ideal for power applications requiring robust performance. Its snap-in plastic peg provides extra stability, and the shrouded design ensures safe mating. Operating from -40°C to +105°C, this connector supports up to 100 mating cycles, delivering durability and efficiency in demanding environments.
Buy Molex 0026013114 now and experience unmatched reliability and high-current power connection performance for PCB applications.
