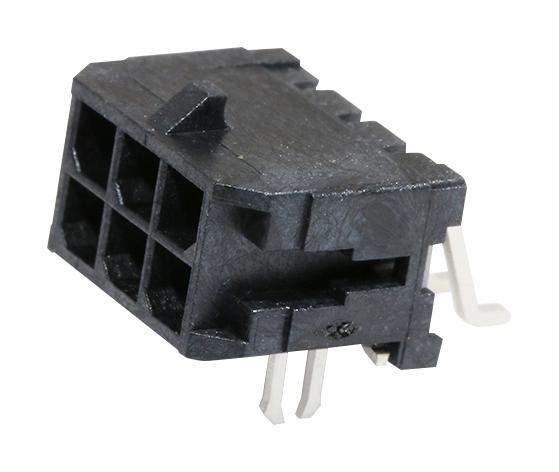

MOLEX 430450608 Power Connector
The Micro-Fit 3.0 Right-Angle Header is a 3.00mm pitch, dual-row connector designed for power and wire-to-board applications. Made from high temperature thermoplastic with gold-plated brass contacts, it supports up to 8.5A current and 600V voltage, ensuring reliable electrical connections. The connector is shrouded, stackable, and fully compatible with surface-mount technology, offering a maximum of 30 mating cycles. Its compliance with UL and CSA standards, glow-wire capability, and operating temperature range from -40°C to +105°C make it suitable for demanding industrial and household appliances.
MOLEX 430450608 Power Connector Specifications:
- Pitch: 3.00mm
- Number of Circuits: 6
- Material: Brass with gold plating
- Color - Resin: Black
- Durability (mating cycles max): 30
- Flammability: UL 94V-0
- Glow-Wire Capable: Yes
- Mated Height: 10.29mm
- Operating Temperature Range: -40°C to +105°C
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Termination Interface: Surface Mount
- Mechanical Orientation: Right Angle
- PCB Thickness - Recommended: 1.60mm
- Packaging: Embossed Tape on Reel
- Material - Resin: High Temperature Thermoplastic
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Surface Mount Compatible (SMC): Yes
- Stackable: Yes
- Shrouded: Yes
Buy the Molex 430450608 – Reliable Power Connector for Industrial Applications
Secure your power connections with the high-quality Molex 430450608 connector. Designed for durability, it supports up to 8.5A and 600V, making it ideal for demanding industrial and household applications. Its shrouded, surface-mount design ensures easy installation and reliable operation, with a maximum of 30 mating cycles. Certified and glow-wire capable, this connector withstands high temperatures from -40°C to +105°C. Purchase online now for trusted quality that guarantees safe and efficient electrical connections in your projects.
Order your Molex Series43045 430450608 right-angle power header today and ensure dependable performance in your industrial projects.
Frequently Asked Questions
Where can I buy MOLEX 430450608?
You can click on the BUY or RFQ button to purchase 430450608 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 430450608?
You can download the 430450608 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 430450608?
MOLEX
