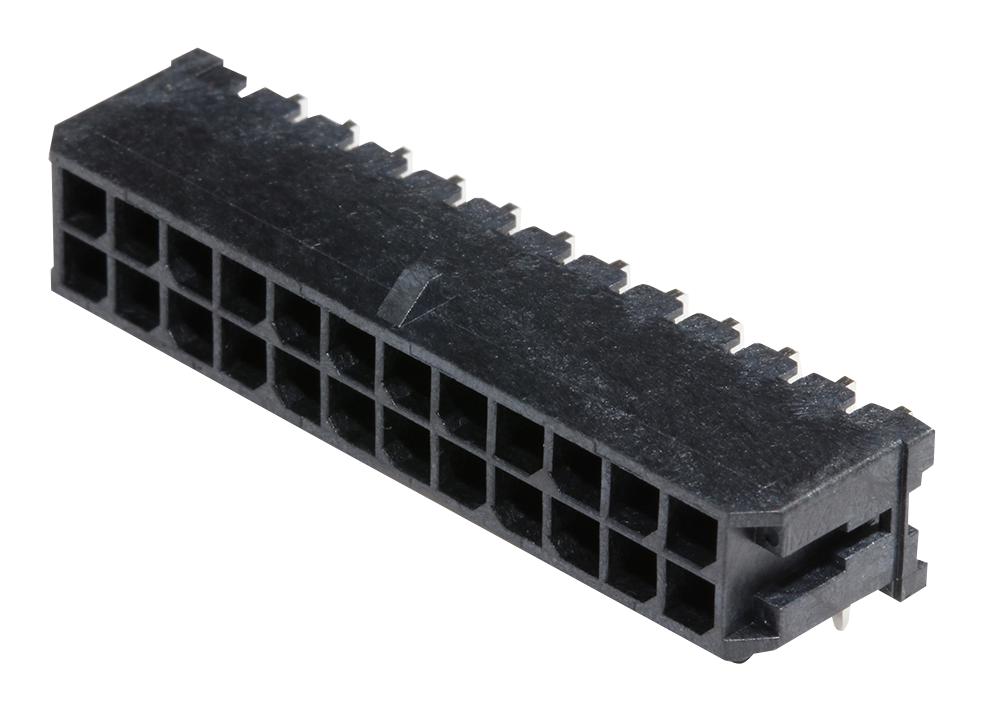

MOLEX 430452401 Power Connector
The Molex Micro-Fit 3.0 right-angle header is a high-current, dual-row connector with a 3.00mm pitch, designed for power and wire-to-board applications. Made from high-temperature thermoplastic with gold-plated contacts and tin plating, it supports up to 8.5A and 600V. The compact, shrouded, stackable design ensures reliable connections in tight spaces. It is fully matable with compatible Micro-Fit 3.0 receptacle housings and is rated for up to 10.29mm height. Suitable for temperature ranges from -40°C to +105°C, meeting RoHS compliance and safety standards.
MOLEX 430452401 Power Connector Specifications:
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Color - Resin: Black
- Circuits (Loaded): 24
- Circuits (Maximum): 24
- Number of Rows: 2
- Orientation: Right Angle
- Pitch - Mating Interface: 3.00mm
- Mated Height: 10.29mm
- Durability (Mating Cycles Max): 260
- Temperature Range - Operating: -40°C to +105°C
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Package: Tray
- Surface Mount Compatible: Yes
- Termination Interface Style: Through Hole
- Flammability: Meets IEC 60695-2 standards, Glow Wire Ignition Temp at least 775°C
- RoHS Compliance: Yes
- Process Capability: Lead-free, 030 process, Max process temp 260°C
Buy the Molex 0430452401 – Reliable Power Connector for Industrial Applications
Discover the Molex Micro-Fit 3.0 right-angle connector, a reliable solution for power and wire-to-board connections. Featuring a 3.00mm pitch, dual-row design, and gold-plated contacts, it supports up to 8.5A at 600V. Made from high-temperature thermoplastic, it ensures durability, safety, and compliance with RoHS standards. Its compact, shrouded, stackable structure makes it ideal for tight spaces in industrial and electronic projects. Easy to install, rated for numerous mating cycles, and perfect for power distribution in demanding environments.
Order your Molex Series43045 0430452401 today and enhance your projects with the durable, high-performance power and wire-to-board connection solution.
