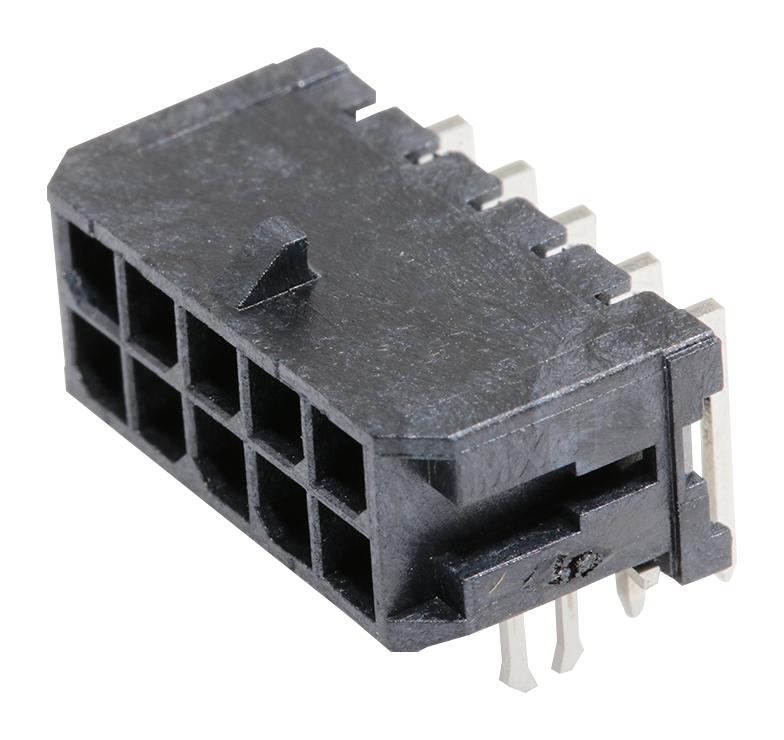

MOLEX 430451021 Micro-Fit 3.0 Header
The MOLEX 43045-1021 is a Micro-Fit 3.0 right-angle header, part of the 43045 series. This header is designed for power and wire-to-board applications, offering a robust and reliable connection. It features 10 circuits arranged in a dual-row configuration, with a 3.00mm pitch. The header incorporates a PCB press-fit metal retention clip for secure mounting and utilizes tin plating for enhanced solderability. It is glow-wire capable, meeting IEC 60335-1 safety standards, and is suitable for applications requiring high-temperature resistance. Customers should perform their own suitability testing to ensure proper performance in their specific application.
MOLEX 430451021 Micro-Fit 3.0 Header Specifications:
- product_family: Micro-Fit 3.0 Connector System
- application: Power, Wire-to-Board
- number_of_circuits_loaded: 10
- number_of_circuits_maximum: 10
- color_resin: Black
- durability_mating_cycles_max: 30
- flammability: 94V-0
- glow_wire_capable: Yes
- mated_height: 10.06mm
- material_metal: Brass
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: High Temperature Thermoplastic
- net_weight: 1.759/g
- number_of_rows: 2
- orientation: Right Angle
- pcb_locator: Yes
- pcb_retention: Yes
- pcb_thickness_recommended: 1.60mm
- pitch_mating_interface: 3.00mm
- plating_min_mating: 0.254µm
- polarized_to_pcb: Yes
- shrouded: Fully Stackable
- surface_mount_compatible: Yes
- temperature_range_operating: -40° to +105°C
- termination_interface_style: Through Hole
- current_max_per_contact: 8.5A
- voltage_max: 600V
- duration_at_max_process_temp_seconds: 030
- lead_free_process_capability: SMC&WAVE
- max_cycles_at_max_process_temp: 003
- process_temperature_max_celsius: 260
- gwit: >= 775 deg C
- gwfi: > 850 deg C
