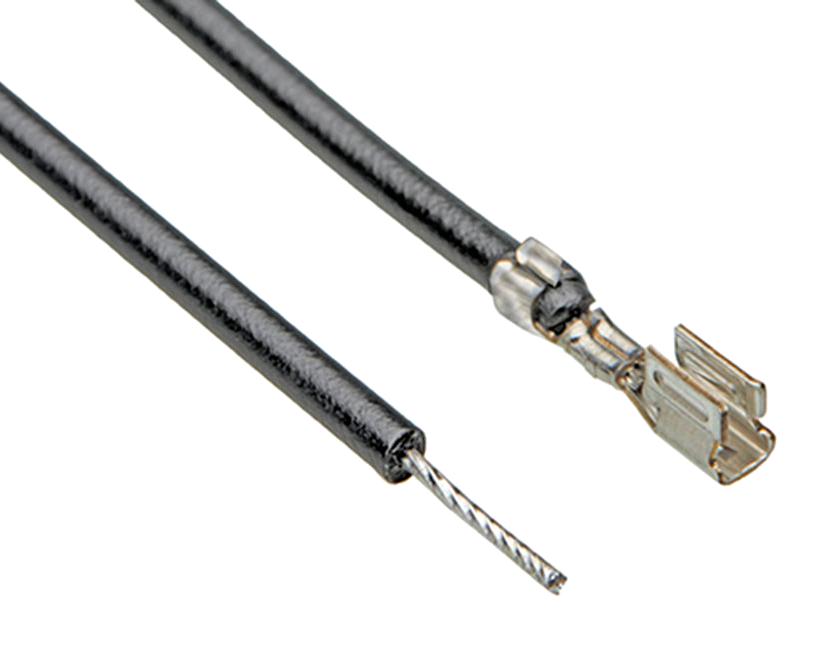

MOLEX 2175111125 L1NK 250 Pre-Crimped Lead
The MOLEX 217511-1125 is a pre-crimped lead assembly within the L1NK 250 series, offering a convenient and reliable connection solution. This assembly simplifies integration by providing a pre-terminated lead, eliminating the need for on-site crimping. It is ideal for applications requiring a female-to-pigtail connection with a 450mm length and 22 AWG wire gauge, suitable for various industrial and commercial applications where secure and efficient power transmission is essential.
MOLEX 2175111125 L1NK 250 Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- assembly_configuration: Pre-crimped Lead Only
- connector_type: L1NK 250 Terminal-to-Pigtail
- cable_length: 450.00mm
- circuits_loaded: 1
- color_resin: Black
- material_metal: Copper Alloy
- plating_mating: Tin
- plating_termination: Tin
- material_resin: PVC
- net_weight: 2.586/g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.42mm-1.60mm
- wire_size_awg: 22
- wire_cable_type: UL 1569
- current_max_per_contact: 6.5A
- voltage_max: 250V AC (RMS)/DC
- upc: 195842119642
- sales_drawing: 2175112121-000
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
Buy the 217511-1125 MOLEX L1NK 250 Pre-Crimped Lead | myMectronic
Purchase the MOLEX 217511-1125 L1NK 250 Pre-Crimped Lead securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2175111125?
You can click on the BUY or RFQ button to purchase 2175111125 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2175111125?
You can download the 2175111125 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2175111125?
MOLEX
