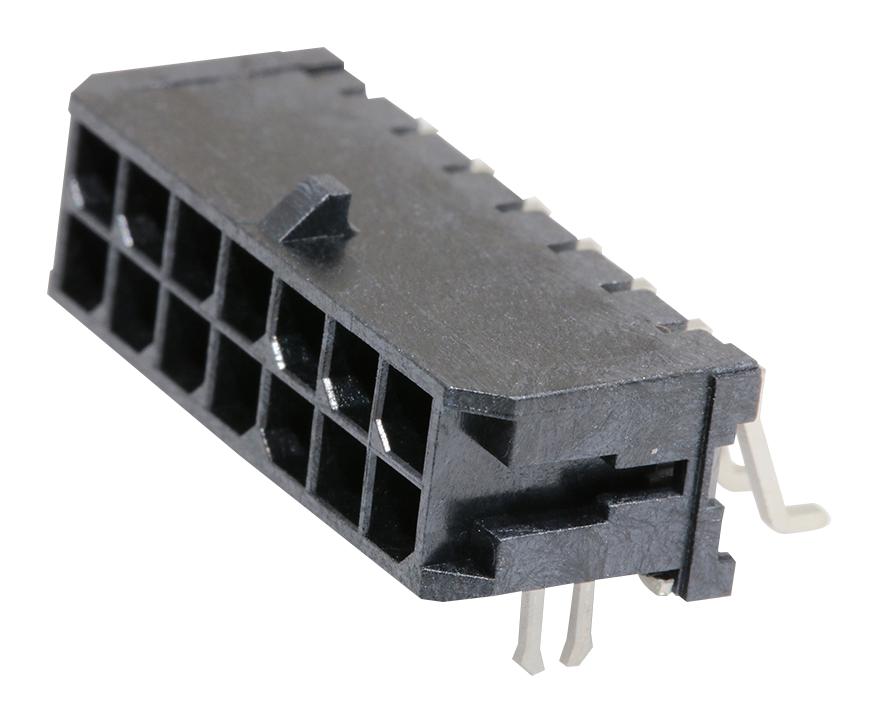

MOLEX 430451407 Power Header
This high-temperature Molex Micro-Fit 3.0 right-angle header features a 3.00mm pitch, dual-row configuration with 14 circuits, designed for reliable wire-to-board connections in demanding industrial environments. Constructed with glow-wire capable, gold-plated contact materials, it offers excellent resistance to heat and fire, meeting IEC 60335-1 standards. The header is designed for surface mounting with a maximum operating temperature of +105°C, supporting high current of 8.5A and voltage of 600V. Ideal for power and signal applications, it provides durability with a maximum of 30 mating cycles and includes PCB retention features.
MOLEX 430451407 Power Header Specifications:
- Pitch: 3.00mm
- Number of Circuits: 14
- Row Configuration: Dual row
- Material - Contact: Gold-plated
- Material - Housing: High-temperature thermoplastic
- Max. Operating Temperature: +105°C
- Current Capacity: 8.5A per contact
- Voltage Rating: 600V
- Terminations: Reflow soldering
- Mating Cycles: Max 30
- Color - Resin: Black
- Surface Mount: Yes
- PCB Thickness - Recommended: N/A
- Packaging: Embossed tape on reel
- Shrouded: No
- Stackable: No
- Temperature Range - Operating: -40°C to +105°C
- Material - Metal: Metal
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Dimensions - Mated Height: 1.60mm
- Certification: CSA, UL
- RoHS Compliance: Yes
- Glow-Wire Capable: Yes
Buy the Molex 0430451407 – Reliable Power and Signal Connectors for Industrial Applications
Purchase the Molex Power Header designed for high-temperature, power, and signal applications in industrial environments. Featuring gold-plated contacts, robust construction, and compliance with safety standards, it ensures reliable performance and longevity. Perfect for PCB mounting with a 3.00mm pitch, supporting up to 14 circuits and 8.5A current, it offers excellent electrical conductivity and fire resistance. Buy online today to benefit from quick delivery, quality assurance, and trusted industrial-grade performance for your engineering projects.
Get Molex 0430451407 today—built for precision, durability, and high-temperature performance in demanding industrial settings.
Frequently Asked Questions
Where can I buy MOLEX 430451407?
You can click on the BUY or RFQ button to purchase 430451407 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 430451407?
You can download the 430451407 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 430451407?
MOLEX
