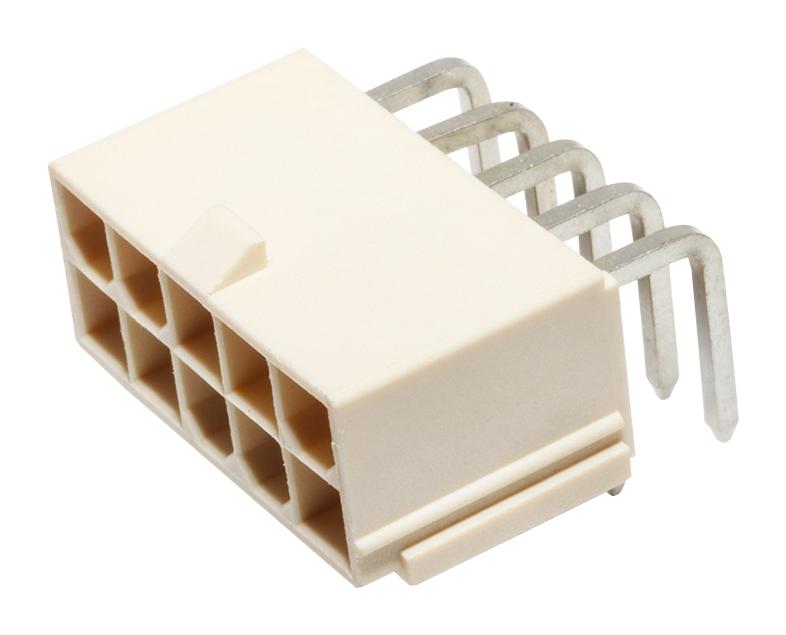

MOLEX 874271002 Power Connector
Mini-Fit Jr. power connectors are compact, right-angle wire-to-board headers designed for high current applications. Featuring a 4.20mm pitch, these durable connectors support up to 13A per circuit, operate within temperatures from -40°C to +105°C, and are RoHS and UL compliant. They are molded in beige nylon, with tin-plated brass contacts for reliable termination. Suitable for power distribution in electronic devices and industrial control systems, the 10-circuit headers are polarized, shrouded, and compatible with Mini-Fit Jr. receptacles and cable assemblies. Ideal for compact, efficient power connectivity solutions.
MOLEX 874271002 Power Connector Specifications:
- Pitch: 4.20mm
- Number of Circuits: 10
- Maximum Current per Circuit: 13A
- Maximum Voltage: 600V
- Operating Temperature Range: -40°C to +105°C
- Material - Contacts: Brass with Tin plating
- Housing Material: Nylon
- Color: Beige
- Mating Cycles Max: 30
- Flammability Rating: 94V-0
- Plating Min - Mating: 2.540μm
- Plating Min - Termination: 2.540μm
- Orientation: Right Angle
- Termination Style: Through Hole
- PCB Thickness: 1.60mm
- Net Weight: 4.400g
Buy the Molex Series Mini-Fit Jr. Power Connectors: 874271002
Purchase the Molex Mini-Fit Jr. power connector series today for efficient, compact power connections suitable for industrial and electronic applications. Designed with a 4.20mm pitch, this 10-circuit right-angle connector supports up to 13A per circuit and is compliant with RoHS and UL standards. Its durable tin-plated brass contacts and nylon housing ensure long-lasting performance. Perfect for power distribution, it features polarization and shrouded design for secure mating. Order online now to enhance your power management solutions with this reliable connector.
Get Molex 874271002 today—built for high-current power distribution and reliable performance in electronic systems.
Frequently Asked Questions
Where can I buy MOLEX 874271002?
You can click on the BUY or RFQ button to purchase 874271002 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 874271002?
You can download the 874271002 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 874271002?
MOLEX
