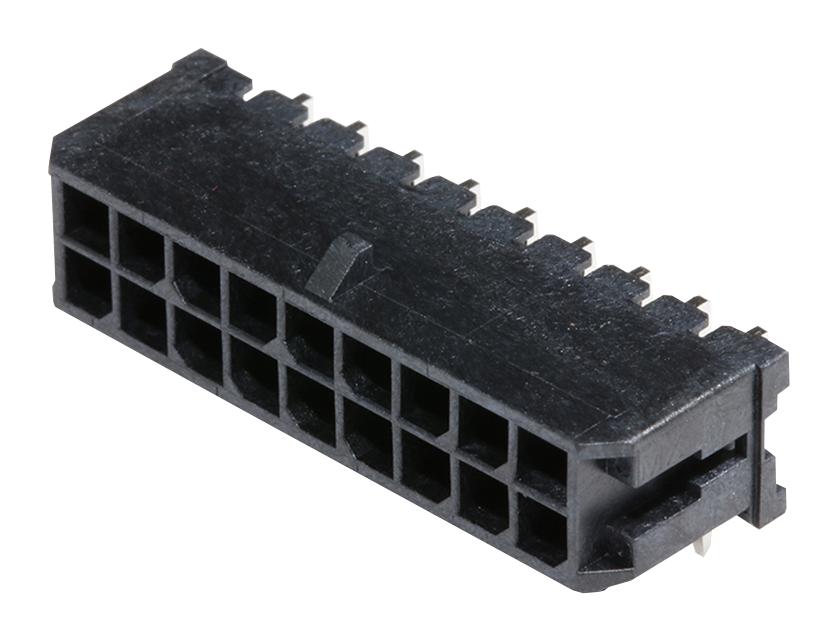

MOLEX 430451801 Power Connector
The Micro-Fit 3.0 Right-Angle Header features a 3.00mm pitch with dual rows and 18 circuits, designed for power and wire-to-board applications. Crafted from high-temperature thermoplastic, it offers UL and CSA certification, glow-wire capability, and an operating temperature range from -40°C to +105°C. The connector includes a snap-in PCB lock, gold plating, tin termination, and complies with RoHS and low-halogen standards. Suitable for demanding electronics, it ensures reliability with a maximum of 10.29mm mated height and a current capacity of 8.5A per contact.
MOLEX 430451801 Power Connector Specifications:
- Pitch: 3.00mm
- Circuit Count: 18 circuits
- Configuration: Dual row, right angle
- Material: High-temperature thermoplastic
- Contact Material: Brass with gold plating
- Termination Material: Tin
- Maximum Current: 8.5A per contact
- Maximum Voltage: 600V
- Operating Temperature: -40°C to +105°C
- Mated Height: 10.29mm
- PCB Thickness Range: Not specified, but suitable for standard board applications
- Color - Resin: Black
- Flammability: UL 94V-0, RoHS, Low-Halogen, Glow-wire capable
- Mating Interface: Through Hole
- Surface Mount Compatibility: No
- Stackable: Yes
- PCB Retention: Yes
- Polarized to PCB: Yes
- Shrouded: Yes
- Durability (Mating Cycles): Up to 10
- Process Temperature Max.: Not specified, but suitable for standard soldering processes
Buy the Molex Series Micro-Fit 3.0 Power Connector: 0430451801
Discover the high-quality Molex power connector designed for reliable power transmission and easy PCB integration. Featuring a 3.00mm pitch, dual row configuration, and gold-plated contacts, it ensures excellent electrical performance. Made from high-temperature thermoplastic, it withstands demanding environments up to +105°C and complies with UL, CSA, RoHS, and glow-wire standards. With a maximum current rating of 8.5A per contact and a maximum voltage of 600V, this connector is ideal for power applications requiring durable and safe connections. Buy online today for secure and efficient connections.
Buy Molex 0430451801 now and experience unmatched reliability and high-performance power connectivity for your electronic projects.
