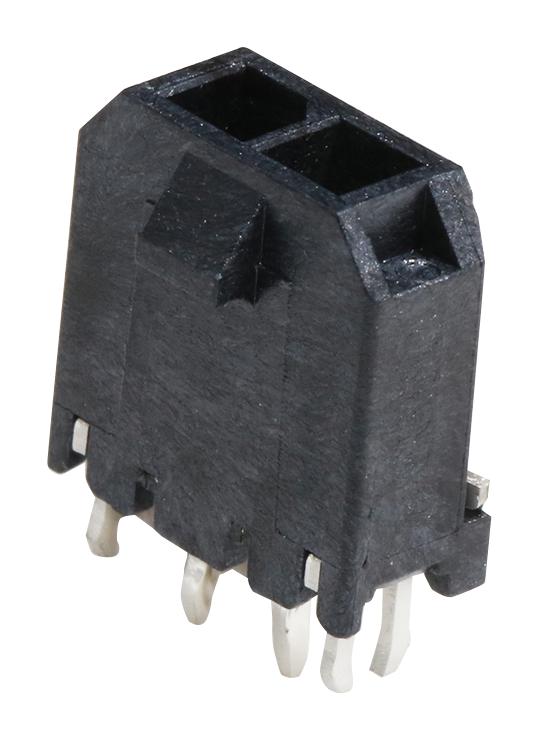

MOLEX 436500222 Power Connector
The Micro-Fit 3.0 Vertical Header is a high-temperature, 3.00mm pitch, single-row connector with 2 circuits, suitable for power and wire-to-board applications. Made from flame-retardant thermoplastic and plated with gold and tin, it offers excellent durability with up to 30 mating cycles. This RoHS-compliant connector features a 17.27mm mated height, a maximum operating temperature of +105°C, and a current capacity of 8.5A per contact at 600V. Compatible with Micro-Fit receptacles, it is ideal for reliable power connections in industrial and household electronics.
MOLEX 436500222 Power Connector Specifications:
- Pitch: 3.00mm
- Number of Circuits: 2
- Mated Height: 17.27mm
- Material - Metal: Brass
- Material - Plating: Gold (mating), Tin (termination)
- Material - Resin: High Temperature Thermoplastic
- Color - Resin: Black
- Durability (mating cycles max): 30
- Flammability: UL 94V-0
- Glow-Wire Capable: Yes
- Operating Temperature Range: -40° to +105°C
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Packaging: Embossed Tape on Reel
- Process Capability: Reflow
- Maximum Process Temperature: 260°C
- Max. Cycles at Max. Process Temperature: 30
Buy the Molex 436500222 U–2013 Reliable Power Connector for Industrial Applications
Order the Molex Micro-Fit 3.0 vertical header online today to ensure reliable power connections for your industrial and electronic projects. This high-temperature, 3.00mm pitch connector with 2 circuits offers excellent durability, interchangeable with compatible receptacles, and meets international safety standards. Its gold and tin plating provide enhanced conductivity and corrosion resistance. Designed for easy mounting and up to 30 mating cycles, this RoHS-compliant connector ensures consistent performance in demanding environments. Perfect for power distribution in various industrial and household devices, it is your reliable solution for secure electrical connections.
Buy Molex 436500222 now and experience unmatched reliability and performance in power and wire-to-board connections.
Frequently Asked Questions
Where can I buy MOLEX 436500222?
You can click on the BUY or RFQ button to purchase 436500222 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 436500222?
You can download the 436500222 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 436500222?
MOLEX
