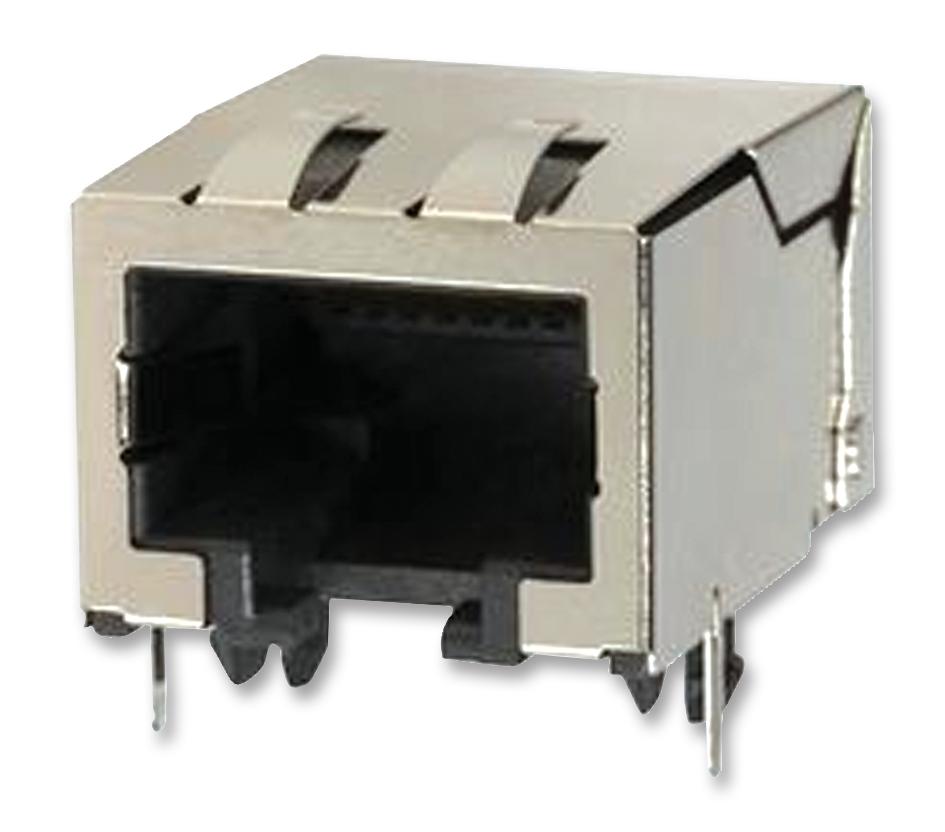

MOLEX 432028916 Ethernet Module
This modular jack is a right-angle, low-profile, shielded connector designed for high-performance Ethernet applications, including Power over Ethernet (PoE). It features enhanced panel grounding tabs, a PCB ground tab, and robust construction with gold-plated contacts and high-temperature thermoplastic housing. Compatible with FCC 68 plugs, it supports 8/8 port configurations, withstands up to 1.5A per contact, and operates within a temperature range of -40°C to +85°C. Its compact design ensures reliable, EMI-shielded connections suitable for networking and industrial uses.
MOLEX 432028916 Ethernet Module Specifications:
- Component Type: Magnetic
- Performance Category: Power over Ethernet (PoE)
- Color - Resin: Black
- Durability (mating cycles max): Not specified
- Flammability: UL 94V-0
- Inverted / Top Latch: No
- Jack Height: 12.09mm
- Material - Metal: Brass, Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Net Weight: 4.378 grams
- Orientation: Right Angle (Side Entry)
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.57mm
- Packaging Type: Tray
- Panel Mount: Flanged
- Pitch - Mating Interface: 1.02mm
- Pitch - Termination Interface: 1.27mm
- Plating min - Mating: 2.540 micrometers
- Plating min - Termination: 2.540 micrometers
- Port Configuration: 8/8
- Positions / Loaded Contacts: 8/8
- Surface Mount Compatible (SMC): Yes
- Temperature Range - Operating: -40°C to +85°C
- Termination Interface: Style: Through Hole
- Voltage - Maximum: 150V AC (RMS)
- Current - Maximum per Contact: 1.5A
- Shielded: Yes
- Grounding to PCB: Yes
- Grounding to Panel: None
Buy the Molex Series 432 Power over Ethernet Modular Jack: 0432028916
Enhance your network with this shielded, right-angle Ethernet modular jack designed for Power over Ethernet applications. Featuring gold-plated contacts, robust thermoplastic housing, and grounding tabs, this 8/8 port module ensures secure, EMI-shielded, and reliable connections. Suitable for industrial and networking projects, it supports up to 150V AC (RMS) and 1.5A per contact, with a temperature range of -40°C to +85°C. Order online today for consistent connectivity and durable performance.
Order your Molex Series 432 PoE Modular Jack today and ensure reliable, shielded Ethernet connections with enhanced grounding features.
Frequently Asked Questions
Where can I buy MOLEX 432028916?
You can click on the BUY or RFQ button to purchase 432028916 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 432028916?
You can download the 432028916 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 432028916?
MOLEX
