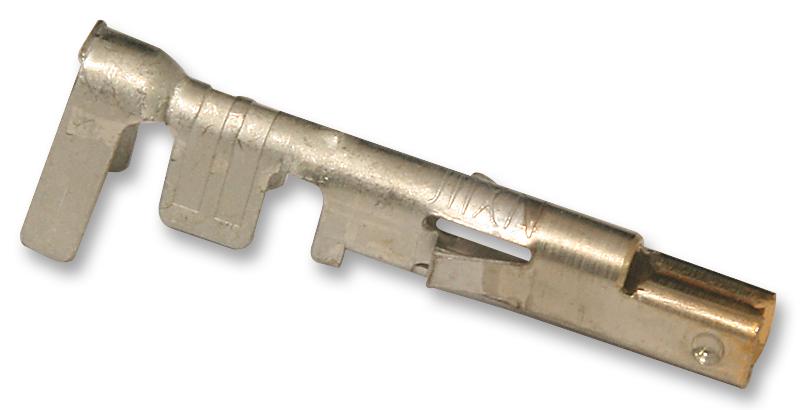

MOLEX 39000158 Mini-Fit Jr. Crimp Terminal
The 4.20mm Pitch Mini-Fit Jr. crimp terminal is a female, phosphor bronze connector with gold plating, designed for 16 AWG wires. It offers reliable crimping with a maximum of 30 mating cycles, ensuring durability and consistent electrical performance. Ideal for high-quality, secure connections in electronic assemblies, it is RoHS, ELV, and REACH compliant, with a maximum current capacity of 9A and a voltage rating of 600V. Packed in bags, this terminal ensures easy handling and installation for various electronic and electrical applications.
MOLEX 39000158 Mini-Fit Jr. Crimp Terminal Specifications:
- Pitch: 4.20mm
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Wire Size AWG: 16
- Wire Size mm: 1.80-3.10mm
- Durability: 30 mating cycles max
- Current Max per Contact: 9A
- Voltage Max: 600V
- Termination Interface Style: Crimp or Compression
- Packaging: Bag
- Plating Min - Mating: 0.762μm
- Plating Min - Termination: 0.762μm
Buy the Molex Series Mini-Fit Jr. Crimp Terminal: 4.20mm Pitch Female 16 AWG
Purchase the Molex Mini-Fit Jr. crimp terminal online today to guarantee secure, durable electrical connections. Designed for 16 AWG wires, it features gold plating for corrosion resistance, a compact 4.20mm pitch, and a maximum current of 9A at 600V. Suitable for electronic assemblies requiring reliable crimps with up to 30 mating cycles, this product is RoHS, ELV, and REACH compliant. Packed in convenient bags for easy handling, it enhances your assembly's reliability and performance in a wide range of industrial applications.
Order your Molex Series Mini-Fit Jr. crimp terminal today and ensure secure, high-quality electrical connections for your projects with reliable performance.
Frequently Asked Questions
Where can I buy MOLEX 39000158?
You can click on the BUY or RFQ button to purchase 39000158 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 39000158?
You can download the 39000158 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 39000158?
MOLEX
