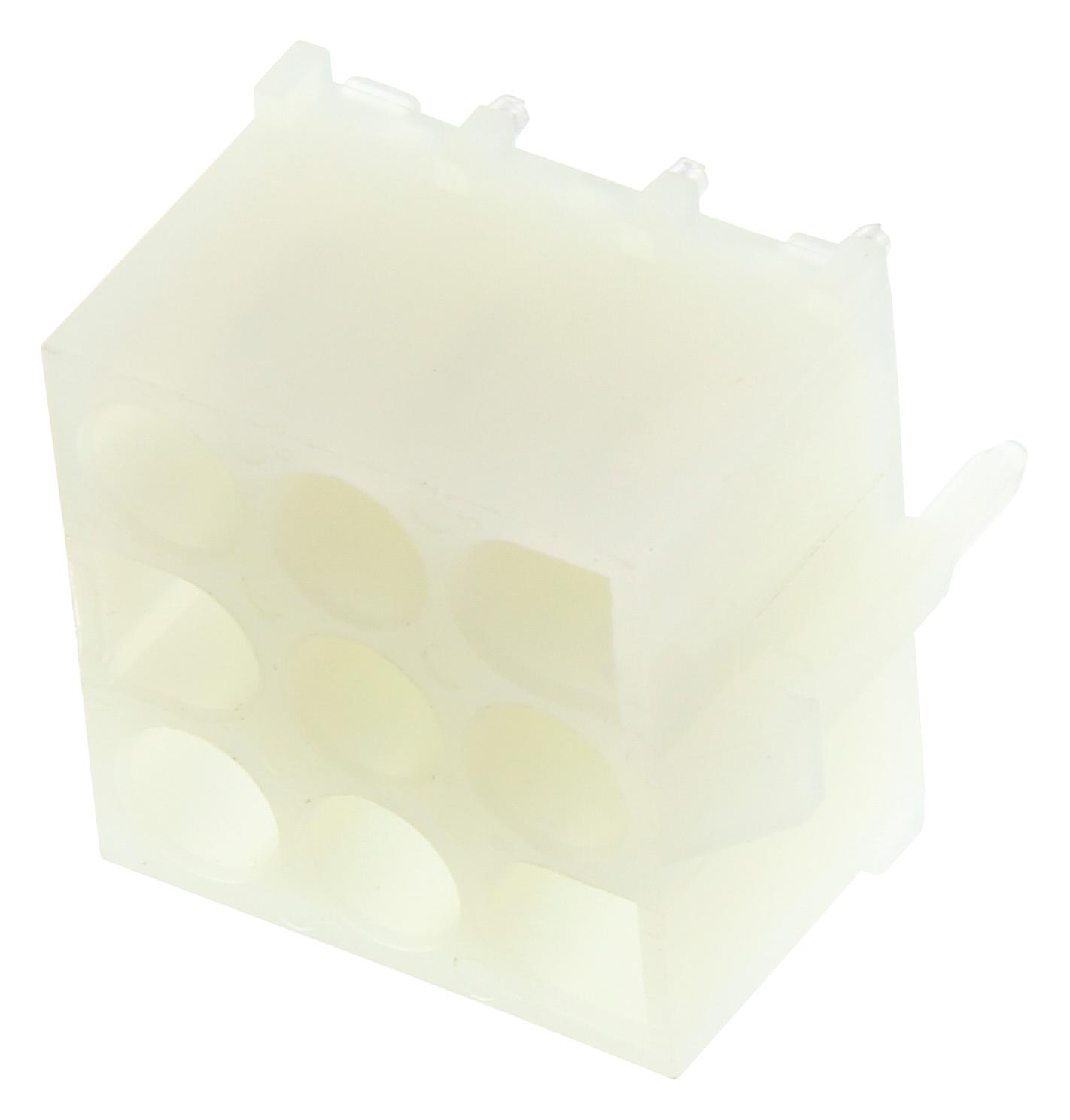

MOLEX 432550145 Power Connector Header
The MLX Power Connector Header features a 6.35mm pitch and a 2.13mm contact diameter, designed for high vibration and power applications. Made from durable PA Polyamide Nylon 6/6 with UL 94V-2 flammability rating, it offers 9 circuits, vertical orientation, and a plastic polarizing peg for secure mating. With tin plating on phosphor bronze contacts, it supports a maximum current of 20A per contact and voltage of 600V. Suitable for reliable board-to-board and wire-to-board connections in industrial environments, it is RoHS and REACH compliant, with a temperature range of -55°C to +105°C, ensuring durability and safety in demanding applications.
MOLEX 432550145 Power Connector Header Specifications:
- Pitch - Mating Interface: 6.35mm
- Contact Diameter: 2.13mm
- Number of Circuits: 9
- Material - Resin: Nylon (PA Polyamide Nylon 6/6) 94V-2
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Current - Maximum per Contact: 20A
- Voltage - Maximum: 600V
- Temperature Range - Operating: -55°C to +105°C
- Flammability: UL 94V-2
- Durability - Mating Cycles Max: 50
- Tolerance: Fully shrouded, polarized to mating part, lock to mating part
- Orientation: Vertical
- Net Weight: 5.017g
- PCB Thickness - Recommended: 1.60mm
- Packaging Type: Tray
- Surface Mount Compatible (SMC): No
- RoHS and REACH compliant, Halogen-Free, Low-Halogen
- Agency Certifications: CSA, UL
Buy the Molex 0432550145 – Reliable Power Connector Header for Industrial Applications
Enhance your industrial wiring and power distribution with this reliable Power Connector Header, featuring a 6.35mm pitch, 9 circuits, and tin-plated contacts. Designed for high vibration environments, it supports 20A current per contact and a maximum voltage of 600V. Constructed from durable nylon with UL 94V-2 flammability rating, it performs reliably across a temperature range of -55°C to +105°C. Suitable for both wire-to-board and board-to-board applications, it is RoHS and REACH compliant, ensuring safety and sustainability for your manufacturing needs.
Order your Molex Series 0432550145 power connector today and ensure secure, high-vibration power and board-to-board connections in your industrial projects.
