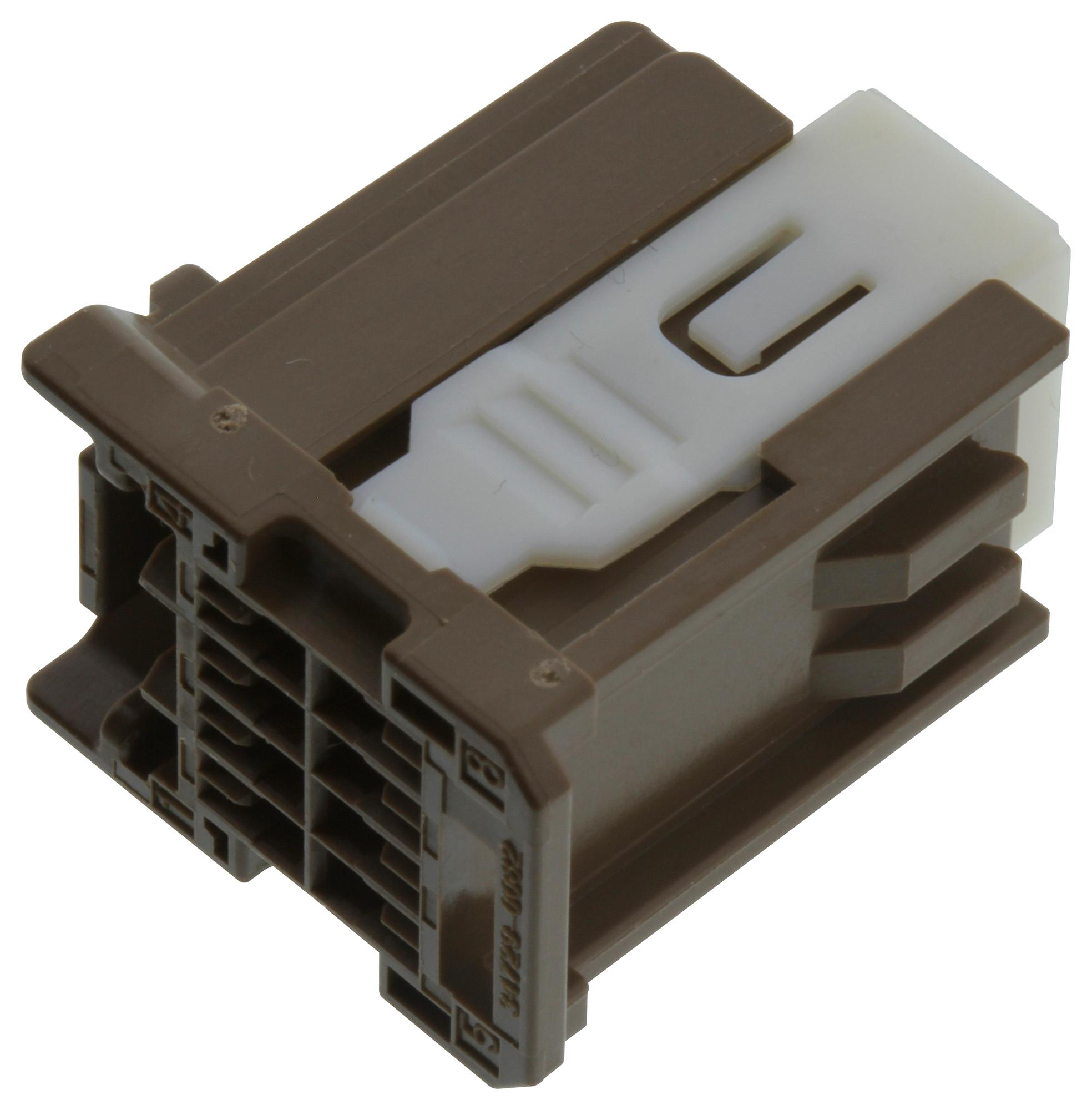

MOLEX 347290082 Stac64 Receptacle Assembly
The MOLEX 34729-0082 Stac64 receptacle assembly is a versatile solution for wire-to-board connectivity. Designed with 8 circuits and polarization C, this connector ensures proper alignment and secure mating. Its brown high-temperature thermoplastic resin construction and tin plating on both mating and termination interfaces provide excellent durability and electrical performance. Commonly used in industrial automation, consumer electronics, and automotive applications, the Stac64 system offers a compact and efficient connection solution. Purchase with confidence knowing you're getting a genuine MOLEX component.
MOLEX 347290082 Stac64 Receptacle Assembly Specifications:
- circuits_loaded: 8
- circuits_maximum: 8
- color_resin: Brown
- durability_mating_cycles: 10
- glow_wire_capable: No
- guide_to_mating_part: None
- lock_to_mating_part: Yes
- material_metal: Brass
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: High Temperature Thermoplastic
- net_weight_g: 4.190
- number_of_rows: 2
- orientation: Vertical
- pc_tail_length_mm: 3.33
- pcb_locator: Yes
- pcb_retention: None
- pcb_thickness_recommended_mm: 1.60
- packaging_type: Tray
- pitch_mating_interface_mm: 2.54
- pitch_termination_interface_mm: 2.54
- polarized_to_mating_part: Yes
- polarized_to_pcb: Yes
- robotic_placement: None
- stackable: Yes
- surface_mount_compatible: No
- temperature_range_operating_c: -40 to +100
- termination_interface_style: Through Hole
- current_max_per_contact_a: 10.0
- voltage_max_v: 500
- lead_free_process_capability: N/A
