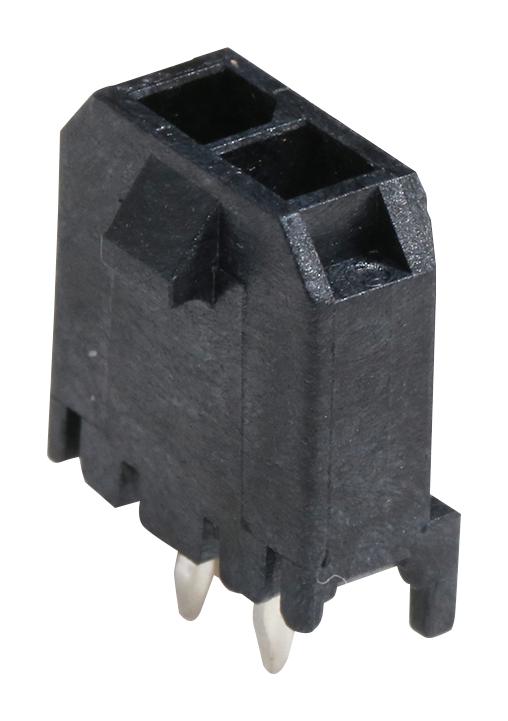

MOLEX 436500217 Micro-Fit Power Connector
The Micro-Fit 3.0 Vertical Header is a power and wire-to-board connector with a 3.00mm pitch, designed for high-temperature applications, and features a single-row, 2-circuit configuration with PCB mount, gold-plated contacts, and glow-wire capability. Manufactured from thermoplastic, it supports up to 8.5A current and 600V voltage, with a mated height of 17.27mm, suitable for reliable electrical connections in various electronic and power systems, offering durability up to 30 mating cycles. Certified UL and CSA compliant, this connector ensures safety in household and industrial devices.
MOLEX 436500217 Micro-Fit Power Connector Specifications:
- Pitch: 3.00mm
- Number of Circuits: 2
- Color - Resin: Black
- Material - Resin: High Temperature Thermoplastic
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Mated Height: 17.27mm
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Temperature Range - Operating: -40°C to +105°C
- Flammability: 94V-0
- Glow-Wire Capable: Yes
- Durability (mating cycles max): 30
- PCB Thickness - Recommended: 1.60mm
- Surface Mount Compatible: No
- Orientation: Vertical
- Polarized to PCB: Yes
- Stackable: No
- Packaging Type: Tray
- Processing Temperature Max: 260°C
- Lead-free Process Capability: Yes
- Maximum Cycles at Max Temperature: 30
- Certification: UL E29179, CSA LR19980
- RoHS Compliant: Yes
- REACH SVHC: Not Contained
- Halogen-Free: Yes
Buy the Molex Series 43650 Micro-Fit Connector: 0436500217
Purchase the Molex Micro-Fit Power Connector now—engineered for high performance and durability with a 3.00mm pitch, gold-plated contacts, and maximum current capacity of 8.5A. Its high-temperature thermoplastic material supports reliable operation from -40°C to +105°C, making it ideal for power and electronic applications. With UL and CSA certification, this connector guarantees safety and efficiency in industrial, household, and power systems. Experience seamless online buying—fast shipping, quality assurance, and expert support ensure your project’s success.
Get Molex 0436500217 today—designed for high-temperature durability, reliable power, and secure electrical connections in various electronic systems.
Frequently Asked Questions
Where can I buy MOLEX 436500217?
You can click on the BUY or RFQ button to purchase 436500217 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 436500217?
You can download the 436500217 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 436500217?
MOLEX
