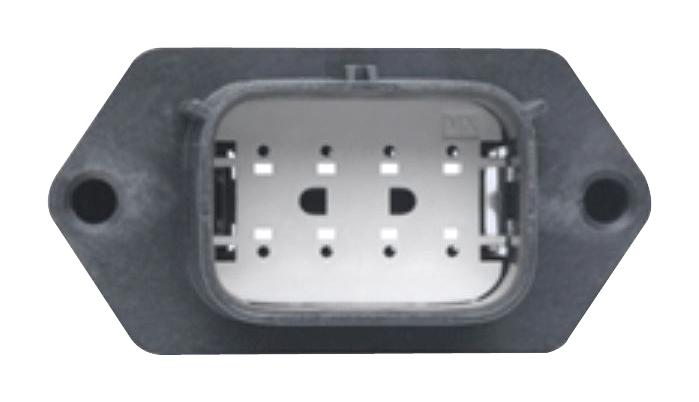

MOLEX 194290011 MX150L Panel Mount Plug
The MOLEX 19429-0011 is a robust MX150L industrial sealed connector system designed for demanding applications requiring a secure and reliable connection. This panel mount plug features 8 circuits and is specifically designed for inside panel mount applications, offering an IP67 rating for protection against dust and water. It is suitable for power and wire-to-wire connections in industrial environments. Please note that this connector is not suitable for automotive applications with specific USCAR or Toyota Connector Spec requirements. It is designed to mate with MX150L receptacle assemblies and utilizes MX150L male crimp terminals.
MOLEX 194290011 MX150L Panel Mount Plug Specifications:
- circuits_maximum: 8
- color_resin: Black
- flammability: 94V-0
- gender: Plug
- glow_wire_capable: No
- lock_to_mating_part: Yes
- net_weight_g: 15.764
- number_of_rows: 2
- packaging_type: Bag
- panel_mount: Yes
- pitch_mating_interface_mm: 5.84
- polarized_to_mating_part: Yes
- stackable: No
- temperature_range_operating_c: -40° to +125°
- current_maximum_per_contact_a: 18.0
- material_info: Various
- reference_drawing_numbers: PK-19429-001, PS-19417-001-001, SD-19429-006
- series: 19429
- mates_with: 19418 MX150L Receptacle Assemblies
- use_with: 19417 MX150L Male Crimp Terminals, 194270022 MX150L Gasket
Buy the 19429-0011 MOLEX MX150L Panel Mount Plug | myMectronic
Purchase the MOLEX 19429-0011 MX150L Panel Mount Plug securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 194290011?
You can click on the BUY or RFQ button to purchase 194290011 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 194290011?
You can download the 194290011 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 194290011?
MOLEX
