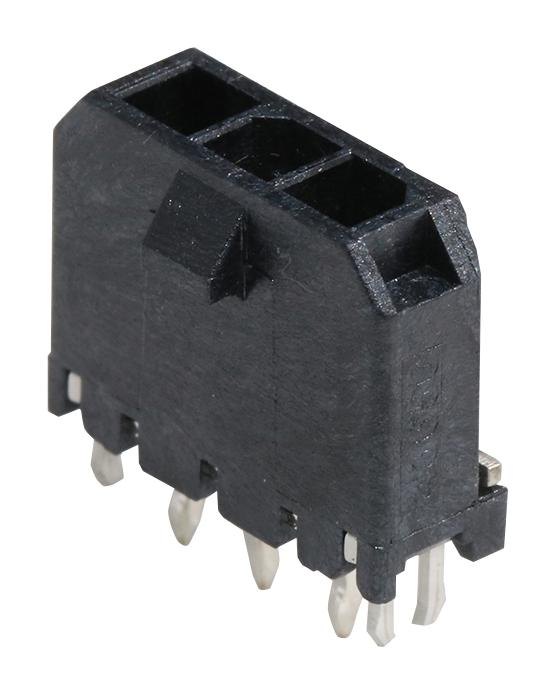

MOLEX 436500322 Micro-Fit 3.0 Vertical Header
The MOLEX 43650-0322 is a Micro-Fit 3.0 vertical header, part of the 43650 series. This header is designed for robust wire-to-board connections in various applications, particularly those requiring high-temperature performance. It features a 3.00mm pitch, a single-row layout, and accommodates 3 circuits. The integrated PCB press-fit metal retention clip ensures secure and reliable mounting. Constructed with high-temperature thermoplastic and gold/tin plating, this header offers excellent durability and electrical performance. It is Glow-Wire Capable and compliant with RoHS standards, making it suitable for a wide range of industrial and consumer electronics applications.
MOLEX 436500322 Micro-Fit 3.0 Vertical Header Specifications:
- overview: Micro-Fit 3.0 Connector System
- status: Active
- description: Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Single Row, 3 Circuits, with PCB Press-fit Metal Retention Clip, Gold, Glow-Wire Capable, Black
- application: Power, Wire-to-Board
- comments: High Temperature, Square Pin, Solder Type
- agency_certification_csa: LR19980
- agency_certification_ul: E29179
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained Per -ED/88/2018 (15 January 2019)
- halogen_free_status: Low-Halogen
- mates_with: Micro-Fit 3.0 Receptacle Housing 43645, Micro-Fit 3.0 TPA Receptacle Housing 171850
- product_family: PCB Headers
- series: 43650
- circuits_loaded: 3
- circuits_maximum: 3
- color_resin: Black
- durability_mating_cycles_max: 30
- flammability: 94V-0
- glow_wire_capable: Yes
- mated_height: 17.27mm
- material_metal: Brass
- material_plating_mating: Gold
- material_plating_termination: Tin
- material_resin: High Temperature Thermoplastic
- net_weight: 0.797/g
- number_of_rows: 1
- orientation: Vertical
- pcb_locator: Yes
- pcb_retention: Yes
- pcb_thickness_recommended: 1.60mm
- packaging_type: Embossed Tape on Reel
- pitch_mating_interface: 3.00mm
- plating_min_mating: 0.381µm
- plating_min_termination: 2.540µm
- polarized_to_pcb: Yes
- shrouded: Fully
- stackable: No
- temperature_range_operating: -40° to +105°C
- termination_interface_style: Surface Mount
- current_maximum_per_contact: 8.5A
- voltage_maximum: 600V
- lead_free_process_capability: REFLOW
- max_cycles_at_max_process_temperature: 003
- process_temperature_max_c: 260
- drawing_numbers_packaging_specification: 436500002-PK-000, 708730000-PK-000
- drawing_numbers_product_specification: PS-43650, TS-43045-001-001, TS-43045-002-001
- drawing_numbers_symbol_footprint_data: SYM-43650-0321
- drawing_numbers_sales_drawing: SD-43650-008-001
