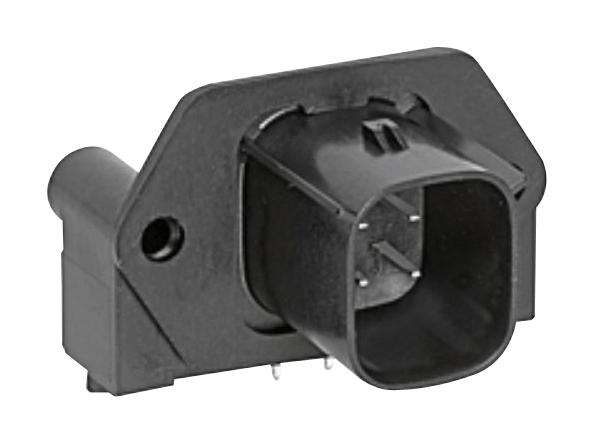

MOLEX 194270032 MX150L PCB Header
The MOLEX 19427-0032 is a robust right-angle PCB header within the MX150L Industrial Sealed Connector System. Designed for demanding industrial environments, this header offers a 5.84mm pitch and a dual-row layout with 4 circuits. It's characterized by its IP67 rating, ensuring protection against dust and water ingress. The header is tin-plated for reliable connectivity and is suitable for power and wire-to-board applications. It is NOT suitable for automotive applications with specific USCAR or Toyota Connector Spec requirements.
MOLEX 194270032 MX150L PCB Header Specifications:
- product_family: PCB Headers
- series: 19427
- application: Power, Wire-to-Board
- comments: IP67 rated; conforms to UL 1977. NOT suitable for automotive applications with requirements such as USCAR-2, USCAR-25, GMW3191, AK Testing, J2030, Volvo Technology Requirements, and Toyota Connector Spec (TCS)
- circuits_loaded: 4
- circuits_maximum: 4
- durability_mating_cycles: 25
- flammability: 94V-0
- glow_wire_capable: No
- lock_to_mating_part: Yes
- material_plating_mating: Tin
- material_plating_termination: Tin
- net_weight_g: 23.624
- number_of_rows: 2
- orientation: Right Angle
- pc_tail_length_mm: 3.30
- pcb_locator: Yes
- pcb_retention: None
- pcb_thickness_recommended_mm: 1.60
- packaging_type: Tray
- pitch_mating_interface_mm: 5.84
- polarized_to_mating_part: Yes
- polarized_to_pcb: No
- shrouded: Fully Stackable
- surface_mount_compatible: No
- temperature_range_operating_c: -40° to +125°
- current_maximum_per_contact_a: 18.0
- voltage_maximum_v: 600
- termination_interface_style: Through Hole
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
- mates_with: 19418
